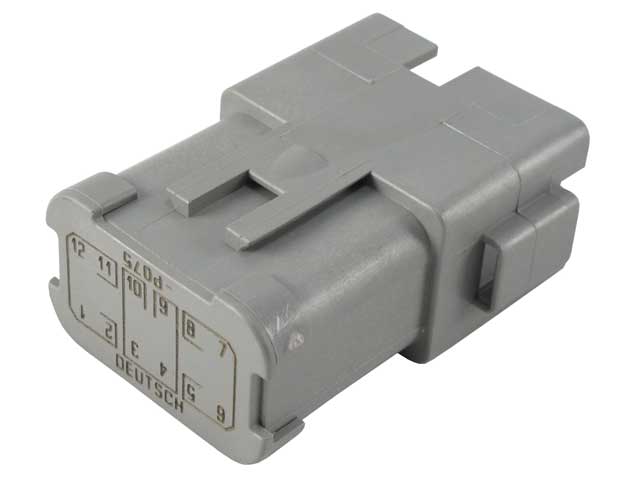

DT04-12PA-P075
DT12-wayPlugDeutsch

DT04-12PA-P075

DT Series · 12-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
12
Contact size
16
Series
DT Series
Type
Plug
Current rating
13
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities12
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
keyedYes, A key
MaterialPlastic
Modification(3) 4 Pin Busses, Nickel Contacts
SeriesDT Series
ShapeRectangular

Mating connectors

DT06-12SA-CE05
DT06-12SA-CE05
DT06-12SA-CE06
DT06-12SA-CE06
DT06-12SA-EP06
DT06-12SA-EP06
DT06-12SA-P012
DT06-12SA-P012

Required components

Must be ordered together with the housing.

Included

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
