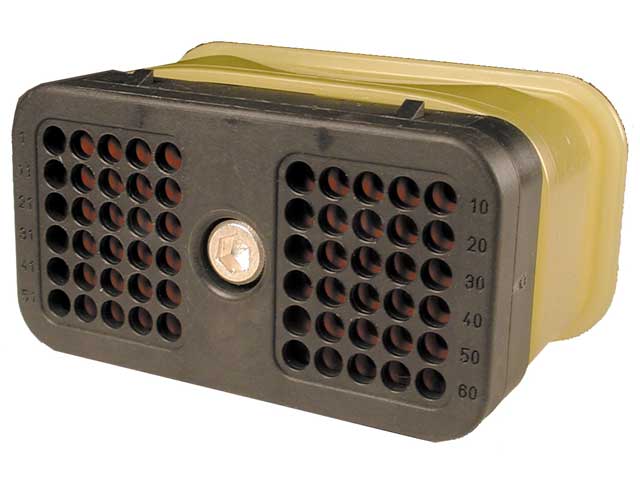

DRC26-60S01
DRC60-waySocketDeutsch

DRC26-60S01

DRC · 60-way · Socket · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
60
Contact size
20
Series
DRC
Type
Socket
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities60
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.040-.095 [1.02-2.41]
keyedYes, 01 key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size16, 18, 20, 22

Compatible contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0122
1062-20-0122
1062-20-0144
1062-20-0144

Accessories

0411-240-2005
0411-240-2005

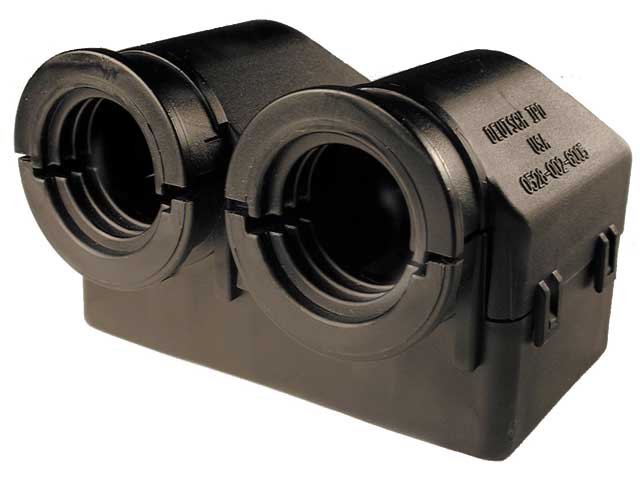

0528-002-6005
0528-002-6005

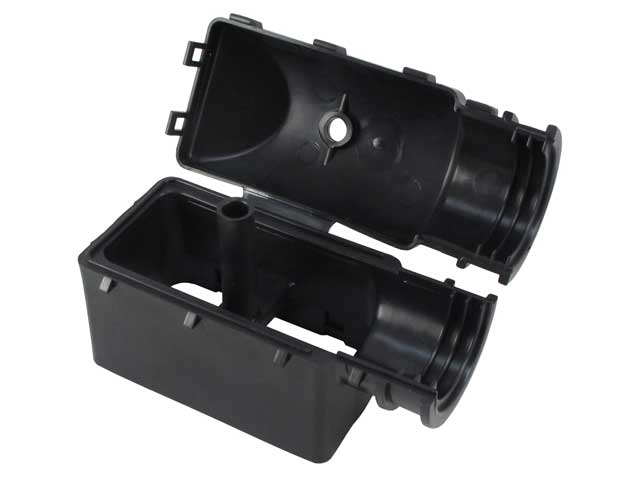

0528-007-6005
0528-007-6005

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
