DRC26-50S05

Outlet stock, €13.98 per unit

14 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
DRC50-waySocketDeutsch

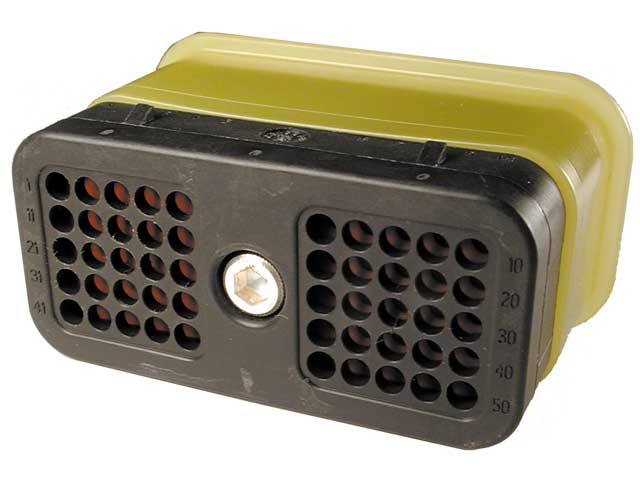

Deutsch DRC26-50S05, DRC Series, 50-Way Socket, connector, for wire processing

DRC Series · 50-way · Socket · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
50
Contact size
20
Series
DRC Series
Type
Socket
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities50
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.040-.095 [1.02-2.41]
keyedYes, 05 key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size16, 18, 20, 22

Compatible contacts

0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
1062-20-0122
1062-20-0122
1062-20-0144
1062-20-0144

Mating connectors

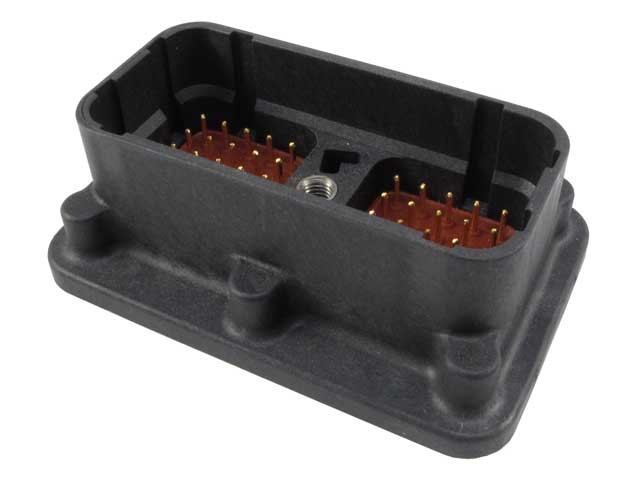

DRC20-50P05
DRC20-50P05

Accessories

0411-240-2005
0411-240-2005
0528-001-5005
0528-001-5005
DRC26-50BT
DRC26-50BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
