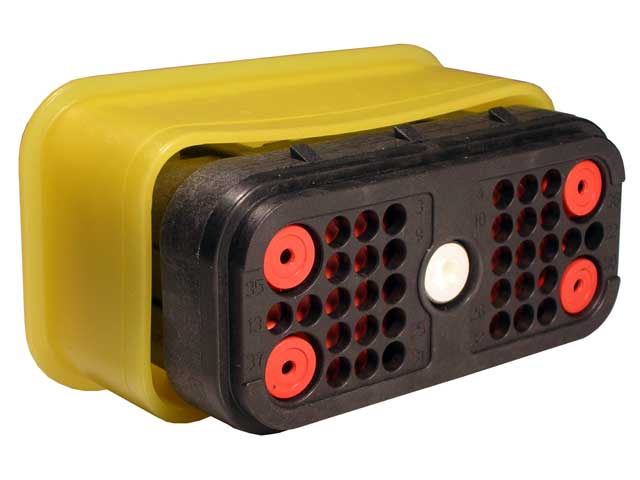

DRC26-38S02-P017
DRC38-waySocketDeutsch

DRC26-38S02-P017

DRC · 38-way · Socket

Generally high availability — ask for current lead time
Cavities
38
Series
DRC
Type
Socket
Wire size
10, 12, 14, 16, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

ColorBlack
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation(#12).097-.170 [2.46-4.95], (#20).040-.095 [1.02-2.41]
keyedNo
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Wire Size10, 12, 14, 16, 20, 22

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231

Accessories

0411-240-2005
0411-240-2005

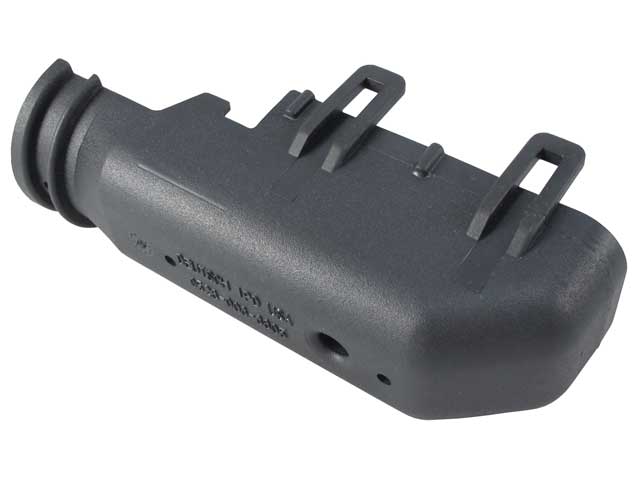

0528-003-3805
0528-003-3805
0528-004-3805
0528-004-3805

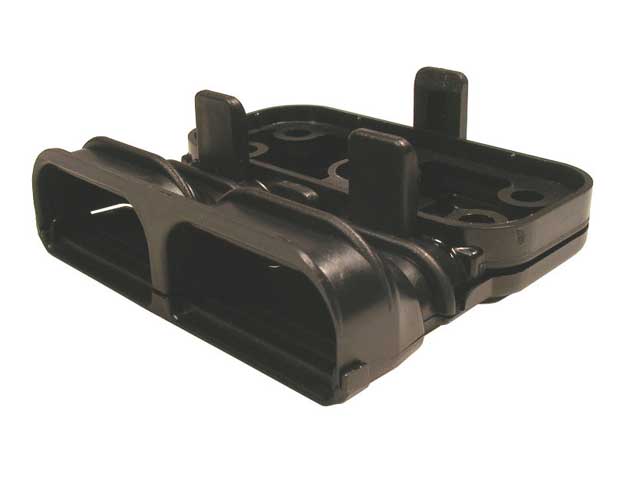

0528-005-3805
0528-005-3805

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
