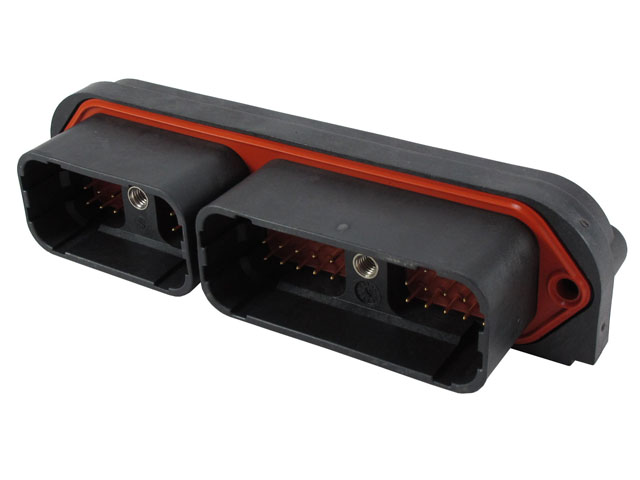

DRC23-64PAA
DRC64-wayPlugDeutsch

DRC23-64PAA

DRC · 64-way · Plug · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
64
Contact size
20
Series
DRC
Type
Plug
Current rating
7.5
Wire size
20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities64
ColorBlack
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, A/A key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Special Features90 degrees molded pins
Wire Size20

Mating connectors

DRC26-24SA
DRC26-24SA
DRC26-40SA
DRC26-40SA

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
