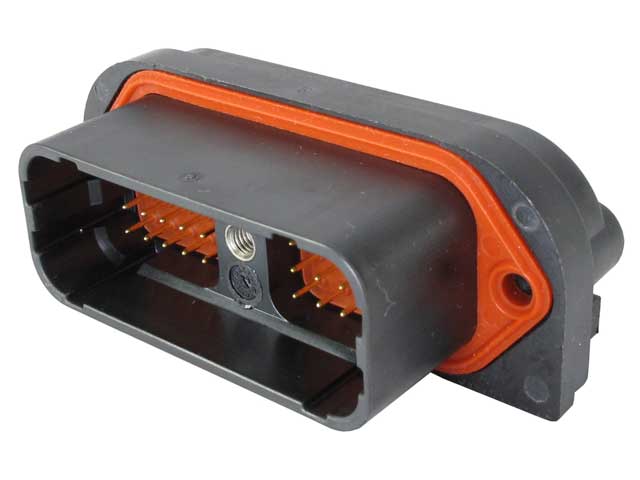

DRC23-40PD
DRC40-wayPlugDeutsch

DRC23-40PD

DRC · 40-way · Plug · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
40
Contact size
20
Series
DRC
Type
Plug
Current rating
7.5
Wire size
20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities40
ColorBlack
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, D key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Special Features90 degrees molded pins
Wire Size20

Mating connectors

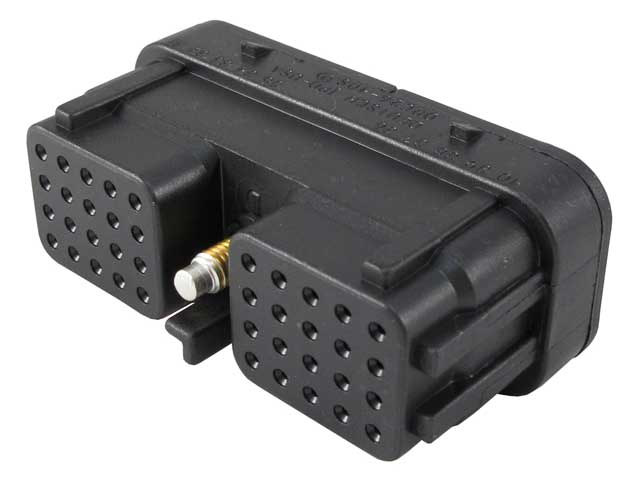

DRC26-40SD
DRC26-40SD

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
