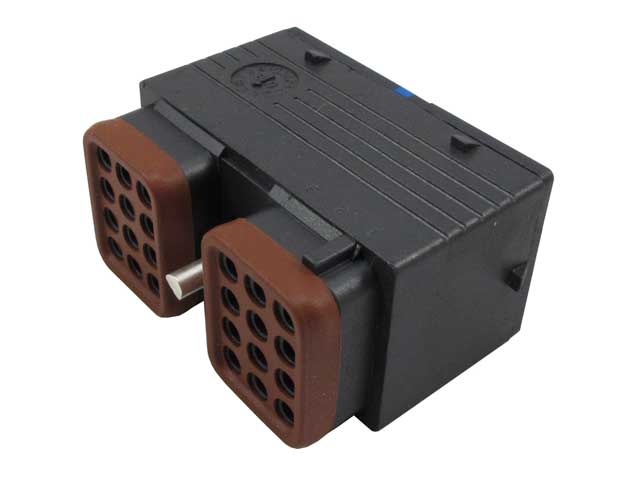

DRC16-24SAE
DRC24-waySocketDeutsch

DRC16-24SAE

DRC · 24-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
24
Contact size
16
Series
DRC
Type
Socket
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities24
ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
keyedYes, A key
MaterialPlastic
Seal SizeE seal
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

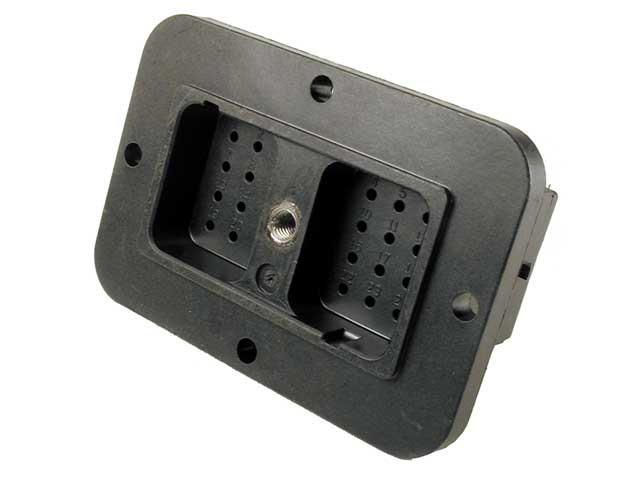

DRC12-24PAE
DRC12-24PAE
DRC13-24PA
DRC13-24PA
DRC14-24PAE
DRC14-24PAE

Accessories

0411-336-1605
0411-336-1605
DRC24-BT
DRC24-BT

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
