DRB16-60SCE-L018
DRB60-waySocketDeutsch

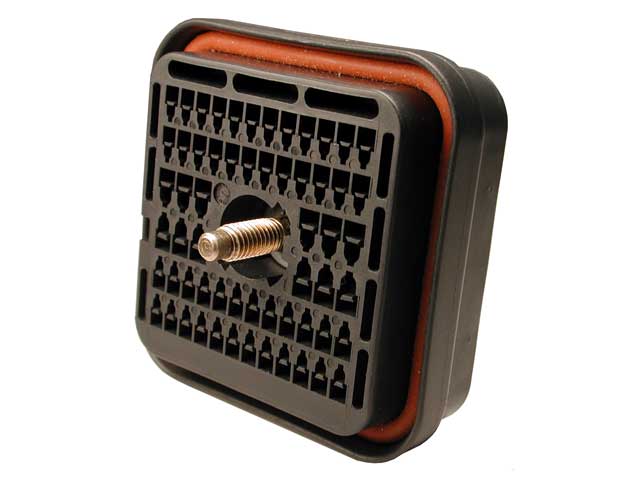

Deutsch DRB16-60SCE-L018, DRB Series, 60-Way Socket, connector, for wire processing

DRB Series · 60-way · Socket

Generally high availability — ask for current lead time
Cavities
60
Series
DRB Series
Type
Socket
Wire size
14, 16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities60
ColorBlack
Connector StylePlug
Flange/In-line/PCB MountFlange
Holds Pin/SocketSocket
Insulation(#16).053-.120 [1.35-3.05], (#20).040-.095 [1.02-2.41]
keyedYes, C key
MaterialPlastic
ModificationWire Router
Seal SizeE seal
SeriesDRB Series
ShapeSquare
Wire Size14, 16, 18, 20, 22

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-20141
0462-201-20141
1062-16-0122
1062-16-0122
1062-20-0122
1062-20-0122

Mating connectors

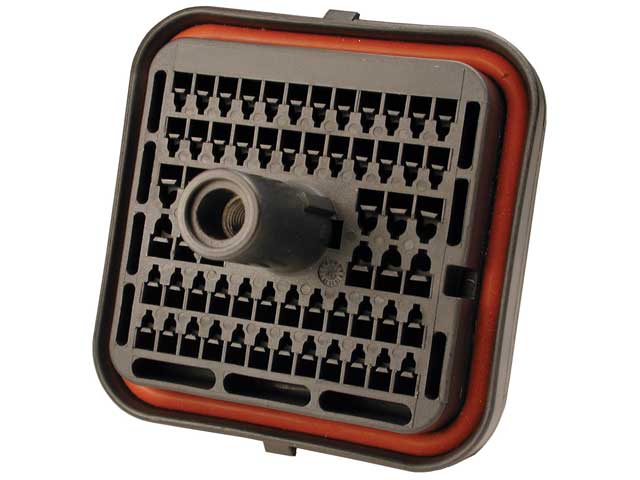

DRB12-60PCE-L018
DRB12-60PCE-L018

Required components

Must be ordered together with the housing.

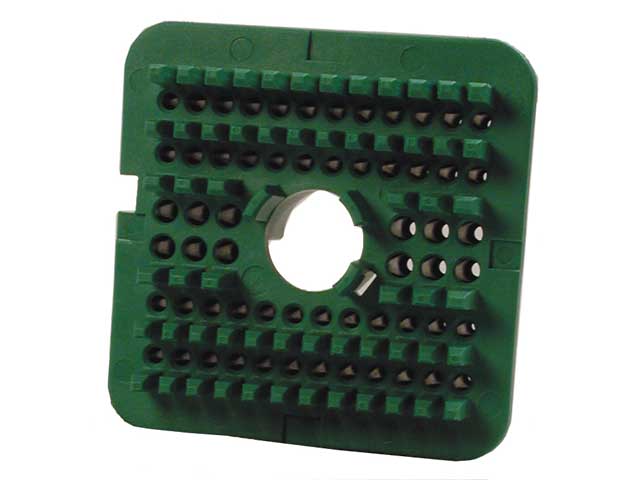

WB-60SC
WB-60SC
WB-60SC
WB-60SC

Accessories

DRB48-60-BT
DRB48-60-BT
DT-RT1
DT-RT1

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
