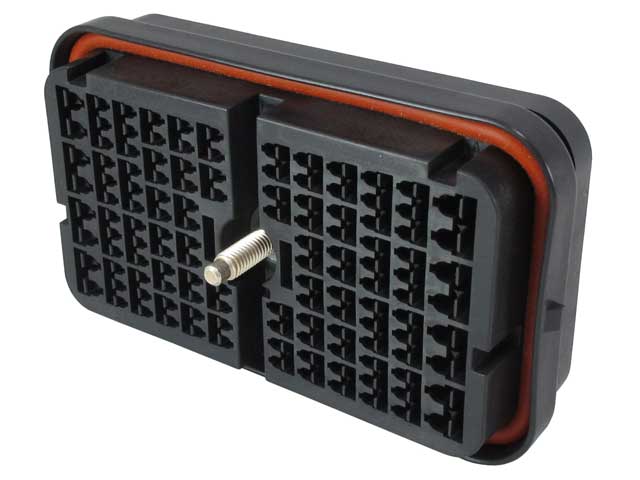

DRB16-128SAE-L018
DRB128-waySocketDeutsch

DRB16-128SAE-L018

DRB · 128-way · Socket

Generally high availability — ask for current lead time
Cavities
128
Series
DRB
Type
Socket
Wire size
10, 12, 14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities128
ColorBlack
Connector StylePlug
Flange/In-line/PCB MountFlange
Holds Pin/SocketSocket
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
keyedYes, A key
MaterialPlastic
ModificationWire Router
Seal SizeE seal
SeriesDRB Series
ShapeRectangular
Wire Size10, 12, 14, 16, 18, 20

Mating connectors

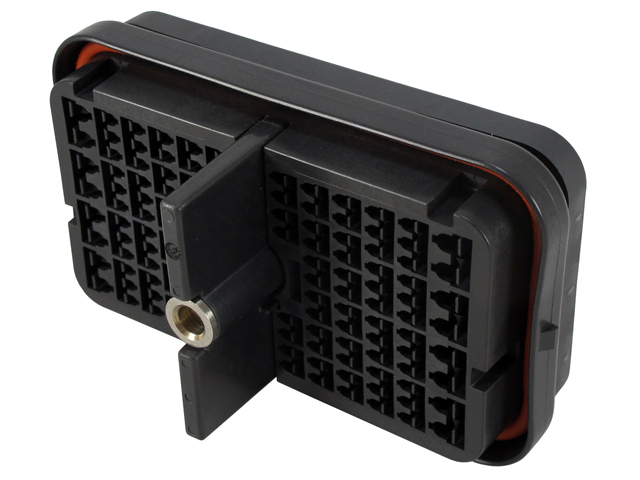

DRB12-128PAE-L018
DRB12-128PAE-L018

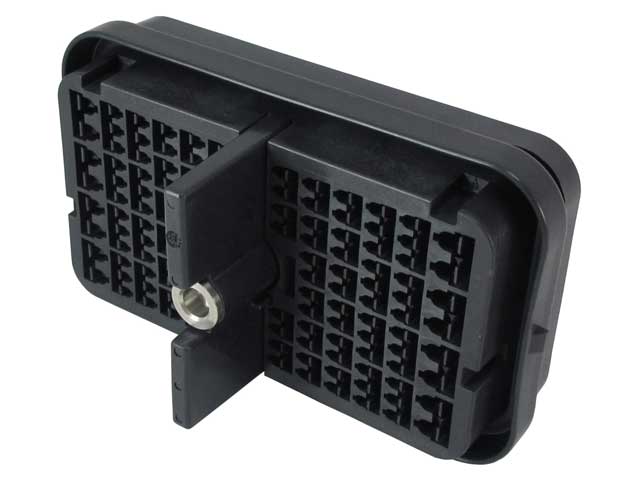

DRB12-128PANE-L018
DRB12-128PANE-L018

Required components

Must be ordered together with the housing.

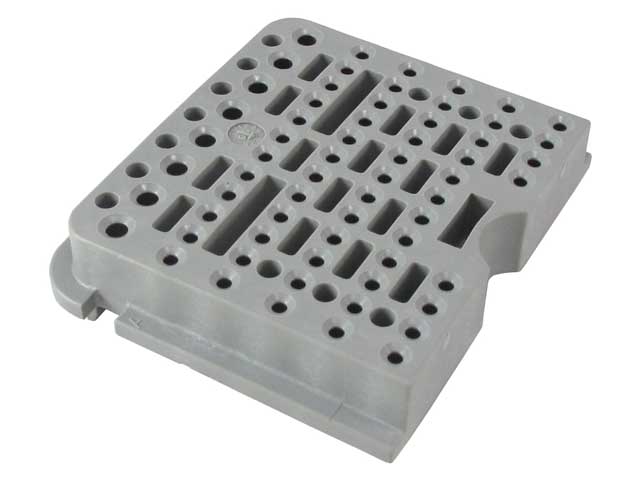

WB-64SA
WB-64SA
WB-64SA x 2

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
