AEC17-40PC
AEC40-wayPlugDeutsch

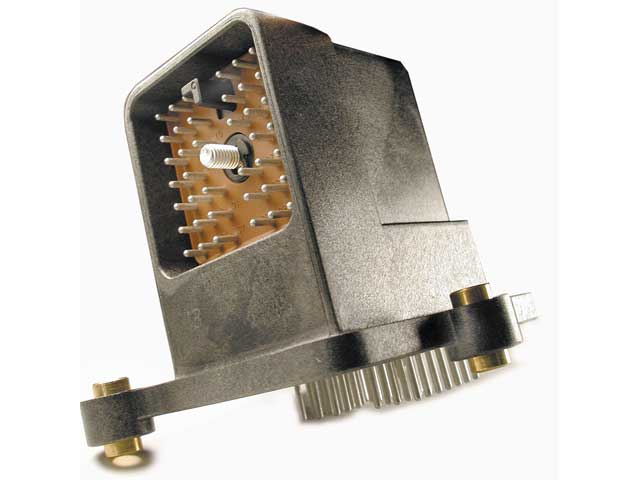

AEC17-40PC

AEC · 40-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
40
Contact size
16
Series
AEC
Type
Plug
Current rating
13
Wire size
16
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities40
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, C key
MaterialPlastic
SeriesAEC Series
ShapeSquare
Wire Size16

Mating connectors

AEC16-40SC
AEC16-40SC

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
