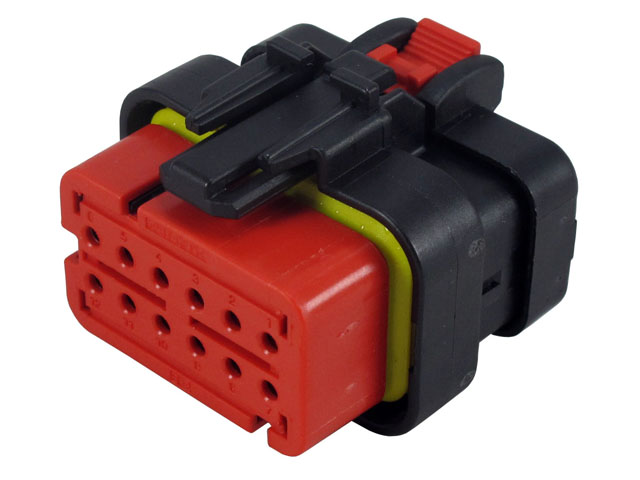

776437-1
DTDeutsch

776437-1

DT Series

Generally high availability — ask for current lead time
Cavities
12
Series
DT Series
Current rating
Up to 13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities12
ColorBlack
Connector StyleReceptacle Contact Housing
Current RatingUp to 13
Holds Pin/Receptacle ContactReceptacle
Insulation.086-.144 [2.18-3.67]
keyedYes, A key
MaterialPlastic
SeriesAMPSEAL 16 Series
ShapeRectangular
TPA ColorRed
Wire Size14, 16, 18, 20

Compatible contacts

1924464-1
1924464-2
1924464-2
776492-1
776492-1
776492-2
776492-2

Mating connectors

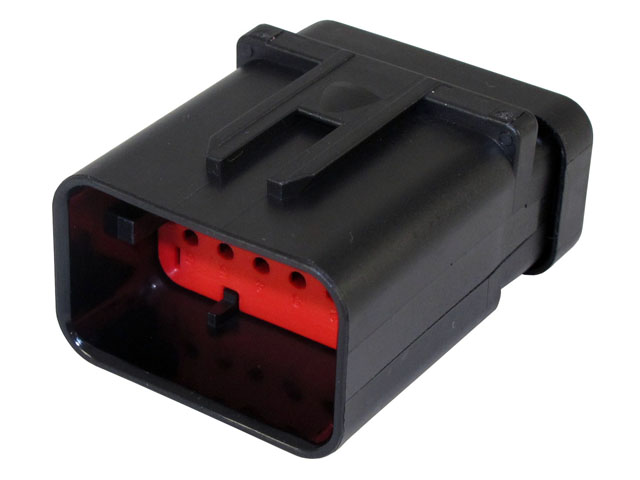

776438-1
776438-1

Required components

Must be ordered together with the housing.

TPA Included

Accessories

776363-1
776363-1
776441-1
776441-1

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
