776273-5
DTDeutsch

776273-5

DT Series

Generally high availability — ask for current lead time
Cavities
14
Series
DT Series
Current rating
Up to 17 gold, up to 8 tin
Wire size
16, 18, 20
Color
Blue
Request a quoteCall usEmail

Technical specifications

No. of cavities14
ColorBlue
Connector StyleReceptacle Contact Housing
Current RatingUp to 17 gold, up to 8 tin
Holds Pin/Receptacle ContactReceptacle
Insulation.067-.106 [1.7-2.7]
keyedYes
MaterialPlastic
SeriesAMPSEAL Series
ShapeRectangular
Wire Size16, 18, 20

Compatible contacts

770520-1
770520-1
770520-3
770520-3
770854-1
770854-3

Mating connectors

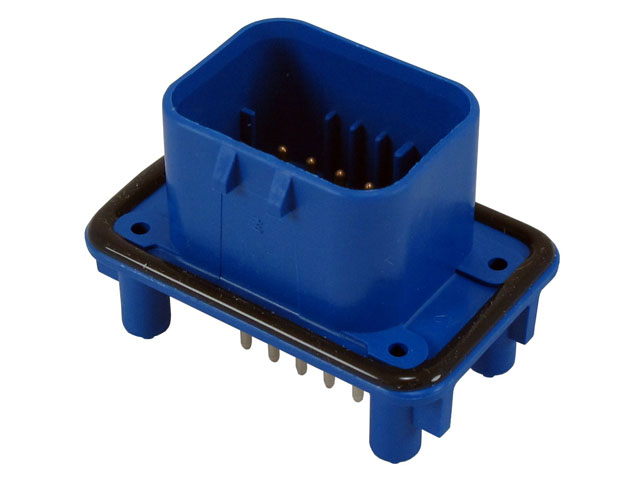

1-776262-5
1-776262-5

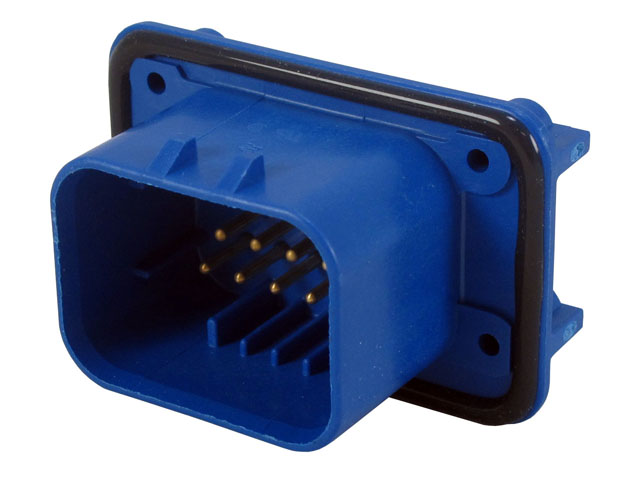

1-776267-5
1-776267-5
776262-5
776262-5
776267-5
776267-5

Accessories

770678-1
770678-1

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
