DTDeutsch

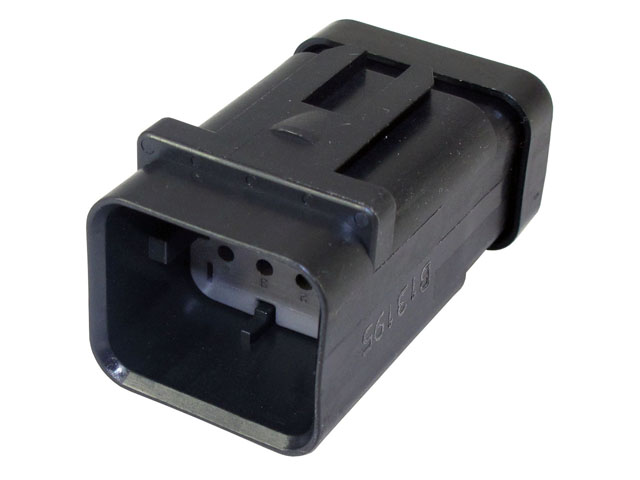

1717676-2
DT Series
Generally high availability — ask for current lead time
Cavities
8
Series
DT Series
Current rating
Up to 13
Wire size
14, 16, 18, 20
Color
Black
Technical specifications
| No. of cavities | 8 |
| Color | Black |
| Connector Style | Pin Contact Housing |
| Current Rating | Up to 13 |
| Holds Pin/Receptacle Contact | Pin |
| Insulation | .086-.144 [2.18-3.67] |
| keyed | Yes, B key |
| Material | Plastic |
| Series | AMPSEAL 16 Series |
| Shape | Rectangular |
| Special Features | Reversed Mount Type |
| TPA Color | Gray |
| Wire Size | 14, 16, 18, 20 |
Required components
Must be ordered together with the housing.
TPA Included
Drawings & CAD files
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
