Komax Gamma 450
S/N 450.0231

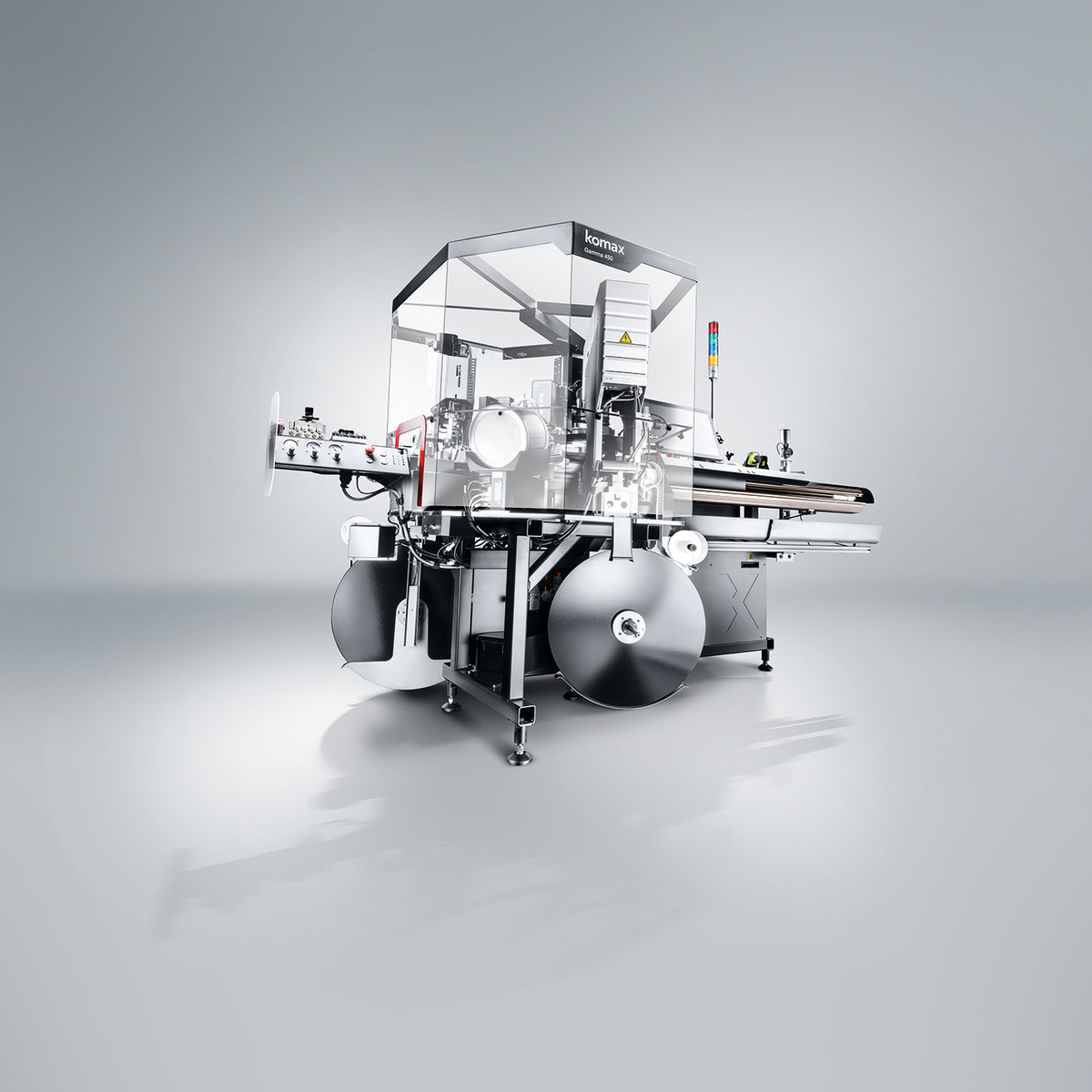

Manufacturer reference photo, not the actual unit for sale. Photos of the physical machine and its exact condition available on request.
About the Gamma 450
The fully automatic Gamma 450 wire processing machine is a compact device for its performance. Thanks to fully integrated, seamless quality monitoring with CFA/CFA+, ACD and Q1250 and optional modules, it can be adapted to high and future-oriented requirements. By individually configuring the machine at four stations, the processes can be set up to meet the respective needs. This makes the Gamma 450 particularly suitable for the automotive industry and its changing requirements for durable machines. The ergonomic design, logical workflows and simple user guidance increase economic efficiency. Terminal reels and crimp tools can also be replaced during operation thanks to the STC tool and terminal reel quick changer.
- Production year:
- 2023
- Production cycles:
- Demo machine
- Price:
- 125,000 EUR
- Delivery terms:
- Excl. freight, installation and training
- Warranty:
- On request
- Payment terms:
- On request
Condition
Only run as a factory test — never put into production use. Configuration change from the original build sheet: part 0045589 (V-blade R=1.00) has been removed and replaced with part 0341028.
As configured
The actual configuration of this specific unit, from the supplier's own equipment record, not a generic spec sheet.
| Part number | Description | Qty |
|---|---|---|
| 0373000 | Wire processing machine Gamma 450 | 1 |
| 0045589 | V-blade R=1.00 | 4 |
| 0045592 | V-blade R=0.50 | 4 |
| 0045593 | V-blade R=0.50 upper | 1 |
| 0045603 | V-blade R=0.50 lower | 1 |
| 0073449 | V-blade R=0.50 | 2 |
| 0338322 | Terminal feed back feed Backfeed compl. | 1 |
| 0338322 | Terminal feed back feed Backfeed compl. | 1 |
| 0341310 | Deposit gripper c/w A530 / G450 | 1 |
| 0341549 | Blade block cpl. dual blade lines A5xx | 1 |
| 0348928 | Crimp height measuring device Komax 341 to Alpha 5xx | 1 |
| 0350362 | Air feed set | 2 |
| 0373252 | Wire deposit basic module 2m cpl G4xx | 1 |
| 0375782 | Case tools G4xx | 1 |
| 0376808 | Options set Transformator 400V cpl | 1 |
| 0377782 | Terminal feed left feed active G450 | 1 |
| 0377782 | Terminal feed left feed active G450 | 1 |
| 0379198 | Pressure regulator set STC / G450 | 2 |
| 0379822 | License Komax HMI software maintenance 3 years | 1 |
| 0385974 | Terminal strip chopper C1360 | 2 |
| 0387000 | Crimp module C1360 | 1 |
| 0387000 | Crimp module C1360 | 1 |
| 0393874 | Straightener unit box cpl. standard G4xx | 1 |
| 0397946 | Safety cover cpl. with writting Gamma 450 | 1 |
| 0398811 | Straightener unit standard w.cable diameter disp | 1 |
| 0404277 | Network product Komax Gateway N3000 | 1 |
| 0404376 | Mounting set | 1 |
| 0417132 | License set Komax HMI network and workflow | 1 |
