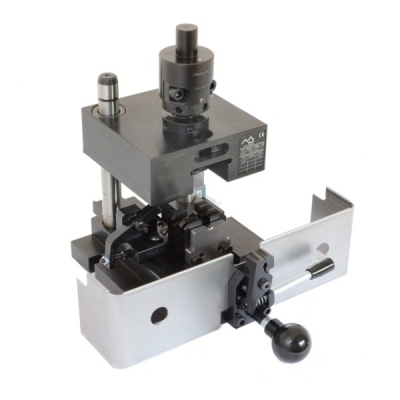

Mecal MSES

Two-post crimping die for big loose terminals with thickness above 1.5mm and wire section up to 75mm².

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Technical Specifications
  • ID: MSES
  • Crimping Height: 212mm (8.34") )
  • Stroke: 50/60 mm (1,968/2.362")
  • Terminal Pitch: Loose
  • Terminal Thickness: > 1,5mm
  • Wire Section: Max 75mm²
  • Feeding System: Manual
  • Weight: 13.6Kg (29.9lb)
  • Dimensions mm: W170xH210xD200
  • Dimensions ("): W6.69xH8.26xD7.87"


Two-post crimping die for big loose terminals with thickness above 1.5mm and wire section up to 75mm². Continuous crimping height adjusting system.
The terminal is loaded by means of a manually operated slide, fitted with a sensor that allow the press to cycle only when the slide has reached its stroke’s end.
All the wearing parts can be replaced without removing the applicator from the press.
Can be fitted to any crimping press having a crimping height (measured from the die mounting plate to the press coupling when at Bottom Dead Center) of 212mm.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.
