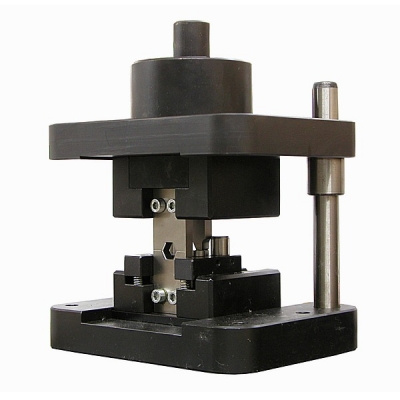

Mecal MSC

Technical Specifications

• ID: MSC / MSCS
• Crimping Height: 272mm (10,7")
• Stroke: 50 mm (1,968")
• Terminal Pitch: Loose
• Terminal Thickness: > 1,5mm
• Wire Section: Over 75mm²
• Feeding System: Manual
• Weight: 20,4 (44,85)
• Dimensions mm: W250xH270xD197
• Dimensions ("): W9,84xH10,6xD7,75

Two-post crimping die for big loose terminals with thickness above 1.5mm., wire section above 75mm². Can be used for coining.
If fitted with the regulating head cod. 951270110, allows for a continuous setting of the crimping height, with a 0.1mm resolution and a 5.8mm range.
All the wearing parts can be replaced without removing the applicator from the press.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.
Cycle counter non available. Must be used with Mecal P200 Crimping Press complete with its specific safety devices.
Produced under a quality Management System certified to ISO 9001 (TÜV).
