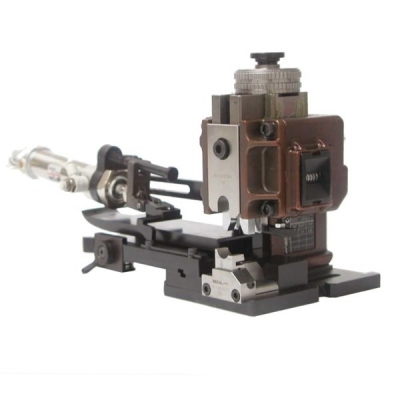

Mecal Magnum
Applicator for linked terminals rolled over a reel to be unrolled « left to right », with thickness between 1.2mm and 1.5mm., wire section up to 25mm². Pneumatic « left-side feed » feeding system.
Specification
Technical Specifications
- ID: LMP
- Crimping Height: 135,8mm (5,346")
- Stroke: 40/30mm (1,575/1,18")
- Terminal Pitch: Not binding
- Terminal Thickness: 1,2 to 1,5mm (0,047" to 0,059"
- Wire Section: Max 25mm²
- Feeding System: Air pressure 5/6 Bar
- Weight: 7,4kg (16,3lb)
- Dimension mm: W320xH145,5xD140
- Dimension ("): 12,5"x5,72"x5,51"
Exclusively supplied with a continuous regulating head having a 0.01mm resolution and a 2.7mm range.
Complete with a non-resettable, 7 digit cycle counter. All the wearing parts can be replaced without removing the applicator from the press.
Can be fitted to any crimping press having a crimping height (measured from the applicator mounting plate to the press « T » coupling when at Bottom Dead Center) of 135.8mm ± 0.02mm.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.
Produced under a quality Management System certified to ISO 9001 (TÜV).
