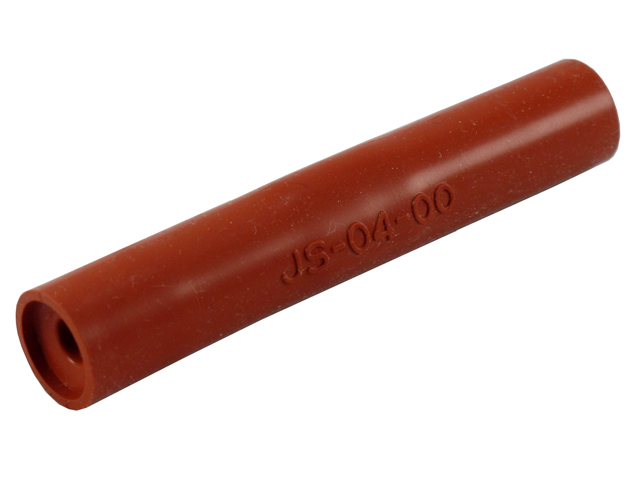

JS-04-00
DeutschCatalogue item

JS-04-00

Generally high availability — ask for current lead time
No. of cavities
1
Color
Orange
Contact Size
4
Current Rating
100
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Pin, Socket
Request a quoteCall usEmail

Additional information

No. of cavities1
ColorOrange
Contact Size4
Current Rating100
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin, Socket
Insulation.280-.292 [7.11-7.42]
keyedNo
MaterialSilicone Rubber
SeriesJiffy Splice
ShapeCircular
Wire Size6

Drawings

Customer View Model (PDF)3D_CVM_CVM_JS-04-00_99_c-js-04-00-99-3d.pdfProduct Drawing (PDF)ENG_CD_JS-XX-XX_G.pdfProduct Drawing (TIF)ENG_CD_JS-XX-XX_G.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_JS-04-00_99_c-js-04-00-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_JS-04-00_99_c-js-04-00-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_JS-04-00_99_c-js-04-00-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
