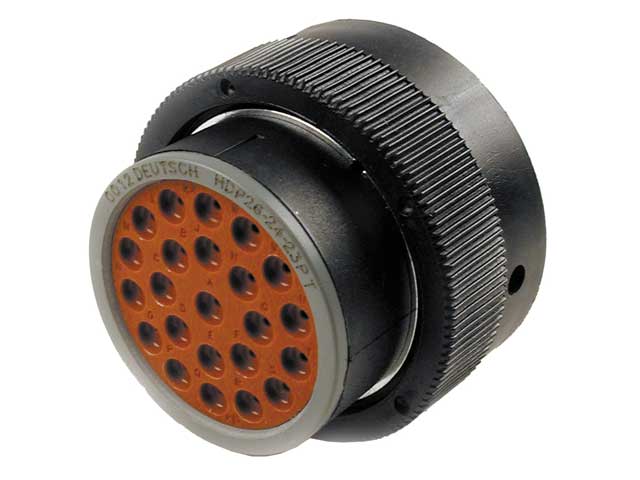

HDP26-24-23PT

Generally high availability — ask for current lead time
Color
Black
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Pin
Request a quoteCall usEmail

Additional information

ColorBlack
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.088-.134 [2.24-3.68]
keyedNo
MaterialPlastic
Seal SizeT seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

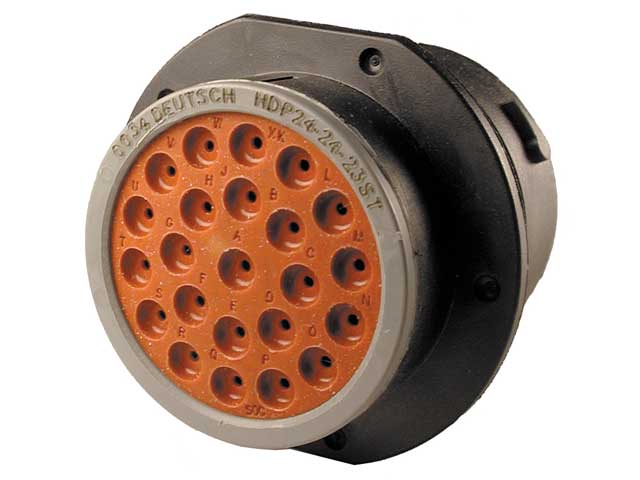

HDP24-24-23ST
HDP24-24-23ST

Accessories

0411-310-1605
0411-310-1605
114017
114017
HD30-24BT-90-BK
HD30-24BT-90-BK
HD30-24BT-BK
HD30-24BT-BK

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP26-24-23PT_99_c-hdp26-24-23pt-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP26-24-XXPXSX_B.pdfProduct Drawing (TIF)ENG_CD_HDP26-24-XXPXSX_B.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP26-24-23PT_99_c-hdp26-24-23pt-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP26-24-23PT_99_c-hdp26-24-23pt-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP26-24-23PT_99_c-hdp26-24-23pt-99.3d_stp.zip
