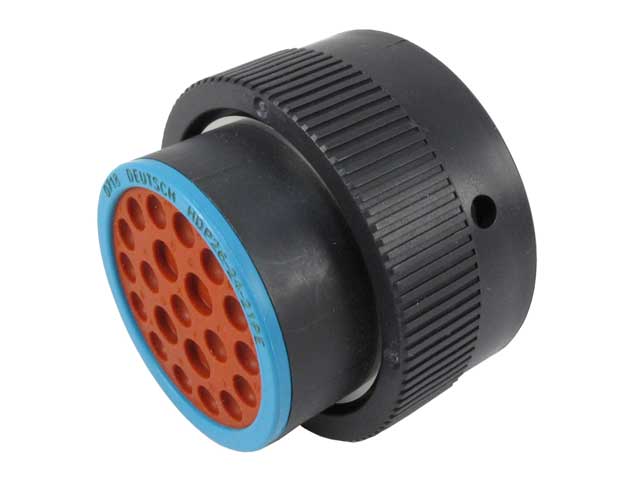

HDP26-24-21PE
DeutschCatalogue item

HDP26-24-21PE

Generally high availability — ask for current lead time
No. of cavities
21
Color
Black
Connector Style
Plug
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Pin
Insulation
(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
Request a quoteCall usEmail

Additional information

No. of cavities21
ColorBlack
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size10, 12, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231

Mating connectors

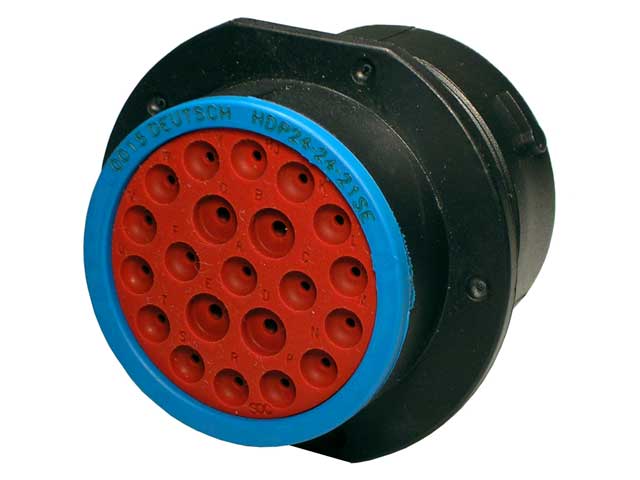

HDP24-24-21SE
HDP24-24-21SE

Accessories

0411-336-1605
0411-336-1605
0411-337-1205
0411-337-1205
HD30-24BT-90-BK
HD30-24BT-90-BK
HD30-24BT-BK
HD30-24BT-BK

Drawings

Product Drawing (PDF)ENG_CD_HDP26-24-XXPXSX_B.pdfProduct Drawing (TIF)ENG_CD_HDP26-24-XXPXSX_B.tif

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
