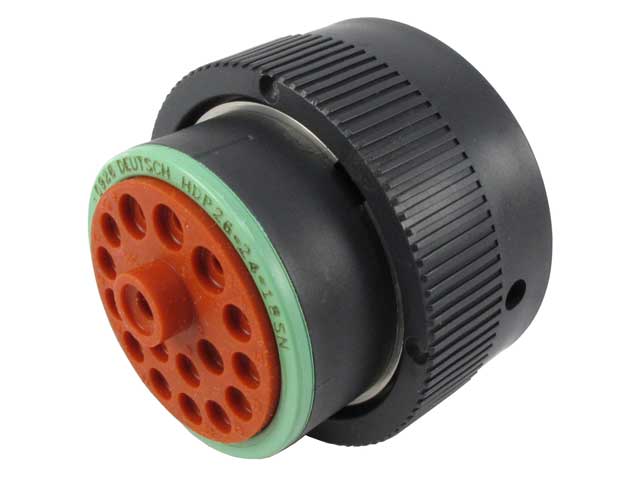

HDP26-24-18SN
DeutschCatalogue item

HDP26-24-18SN

Generally high availability — ask for current lead time
No. of cavities
18
Color
Black
Connector Style
Plug
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Socket
Insulation
(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
Request a quoteCall usEmail

Additional information

No. of cavities18
ColorBlack
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size8, 10, 12, 14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-203-08141
0462-203-08141
0462-203-12141
0462-203-12141

Mating connectors

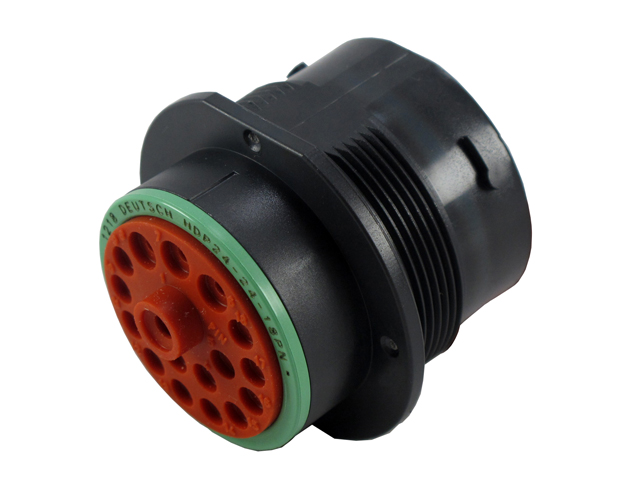

HDP24-24-18PN
HDP24-24-18PN

Accessories

0411-310-1605
0411-310-1605
114008
114008
114010
114010
HD30-24BT-BK
HD30-24BT-BK

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP26-24-18SN_99_c-hdp26-24-18sn-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP26-24-XXPXSX_B.pdfProduct Drawing (TIF)ENG_CD_HDP26-24-XXPXSX_B.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP26-24-18SN_99_c-hdp26-24-18sn-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP26-24-18SN_99_c-hdp26-24-18sn-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP26-24-18SN_99_c-hdp26-24-18sn-99.3d_stp.zip
