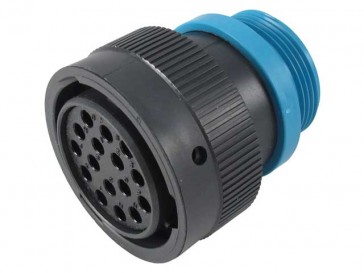

HDP26-24-16SE-L015
DeutschCatalogue item

HDP26-24-16SE-L015

Generally high availability — ask for current lead time
No. of cavities
16
Color
Black
Connector Style
Plug
Contact Size
12
Current Rating
25
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities16
ColorBlack
Connector StylePlug
Contact Size12
Current Rating25
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.097-.158 [2.46-4.01]
keyedNo
MaterialPlastic
ModificationThreaded Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size10, 12, 14

Contacts

0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231
1062-12-0144
1062-12-0144
1062-12-0166
1062-12-0166

Mating connectors

HDP24-24-16PE-L015
HDP24-24-16PE-L015

Accessories

0411-337-1205
0411-337-1205
114017
114017
M902-2053
M902-2053
M902-2243
M902-2243

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP26-24-16SE-L015_99_c-hdp26-24-16se-l015-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP26-24-XXPXSX-L015_B.pdfProduct Drawing (TIF)ENG_CD_HDP26-24-XXPXSX-L015_B.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP26-24-16SE-L015_99_c-hdp26-24-16se-l015-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP26-24-16SE-L015_99_c-hdp26-24-16se-l015-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP26-24-16SE-L015_99_c-hdp26-24-16se-l015-99.3d_stp.zip
