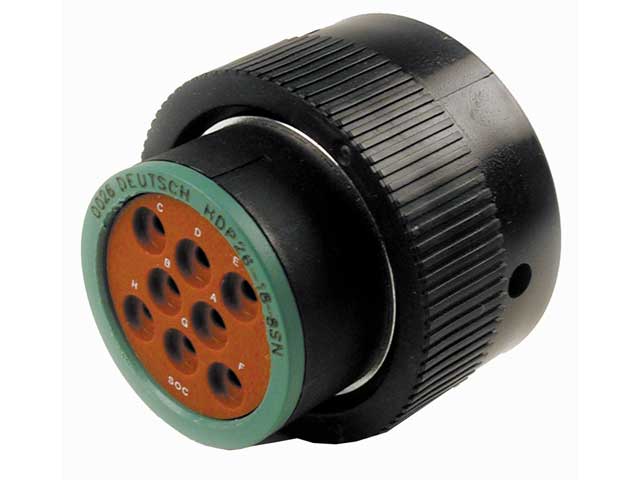

HDP26-18-8SN
Generally high availability — ask for current lead time
No. of cavities
8
Color
Black
Connector Style
Plug
Contact Size
12
Current Rating
25
Flange/In-line/PCB Mount
In-line
Additional information
| No. of cavities | 8 |
| Color | Black |
| Connector Style | Plug |
| Contact Size | 12 |
| Current Rating | 25 |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Socket |
| Insulation | .134-.170 [3.40-4.32] |
| keyed | No |
| Material | Plastic |
| Seal Size | N seal |
| Series | HDP20 Series |
| Shape | Circular |
| Shell Size | 18 shell |
| Wire Size | 10, 12, 14 |
Contacts
Mating connectors
Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_HDP26-18-8SN_99_c-hdp26-18-8sn-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP26-18-XXPXSX_A.pdfProduct Drawing (TIF)ENG_CD_HDP26-18-XXPXSX_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP26-18-8SN_99_c-hdp26-18-8sn-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP26-18-8SN_99_c-hdp26-18-8sn-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP26-18-8SN_99_c-hdp26-18-8sn-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
