HDP26-18-6SN-C030

Outlet stock, €9.48 per unit

1 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
HDPDeutsch

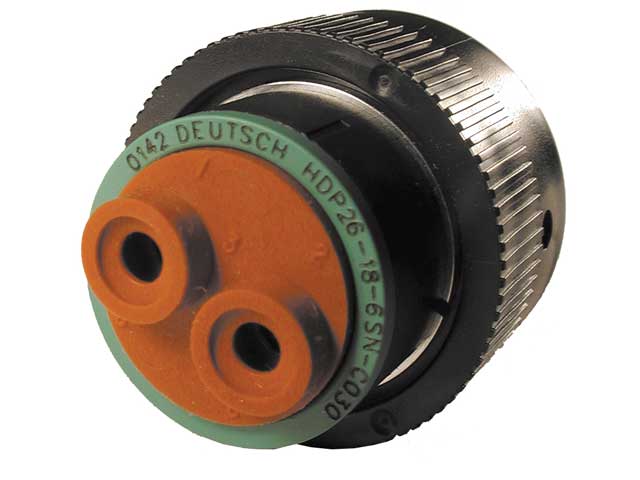

Deutsch HDP26-18-6SN-C030, HDP Heavy Power Series, connector, for wire processing

HDP Heavy Power Series · Size 4 contacts

Generally high availability — ask for current lead time
Cavities
2
Contact size
4
Series
HDP Heavy Power Series
Current rating
100
Wire size
6
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities2
ColorBlack
Connector StylePlug
Contact Size4
Current Rating100
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.280-.292 [7.11-7.42]
keyedNo
MaterialPlastic
ModificationCavities 1, 2, 5, 6 Blocked
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size18 shell
Wire Size6

Compatible contacts

0462-203-04141
0462-203-04141

Mating connectors

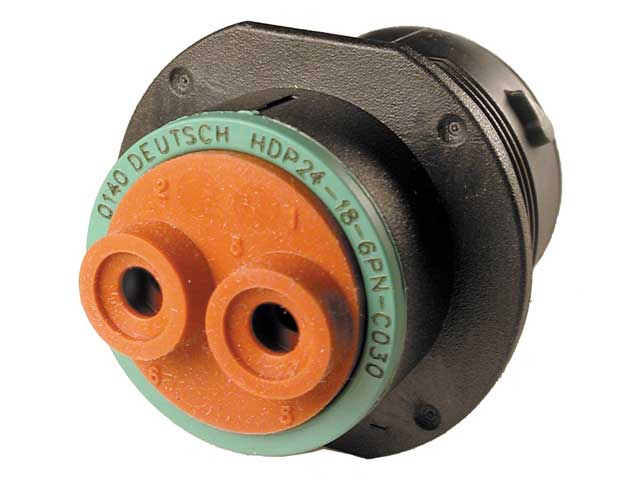

HDP24-18-6PN-C030
HDP24-18-6PN-C030

Accessories

114009
114009
HD30-18BT-90-BK
HD30-18BT-90-BK
HD30-18BT-BK
HD30-18BT-BK

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
