DeutschCatalogue item

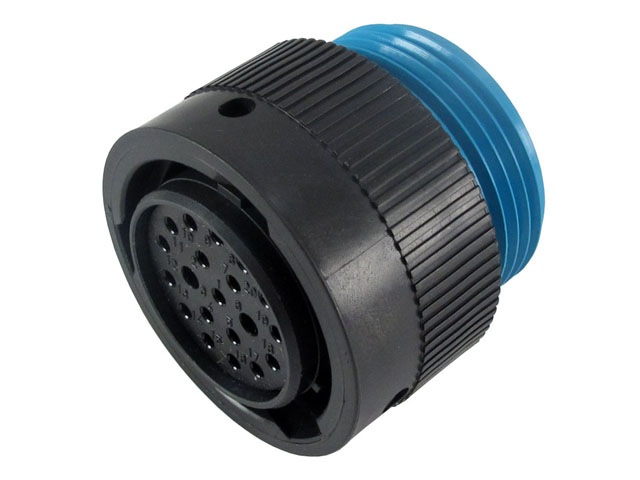

HDP26-18-20SE-L024
Generally high availability — ask for current lead time
No. of cavities
20
Color
Black
Connector Style
Plug
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Socket
Insulation
(#16).053-.120 [1.35-3.05], (#20).040-.095 [1.02-2.41]
Additional information
| No. of cavities | 20 |
| Color | Black |
| Connector Style | Plug |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Socket |
| Insulation | (#16).053-.120 [1.35-3.05], (#20).040-.095 [1.02-2.41] |
| keyed | No |
| Material | Plastic |
| Modification | Wide Threaded Adapter |
| Seal Size | E seal |
| Series | HDP20 Series |
| Shape | Circular |
| Shell Size | 18 shell |
| Wire Size | 14, 16, 18, 20, 22 |
Contacts

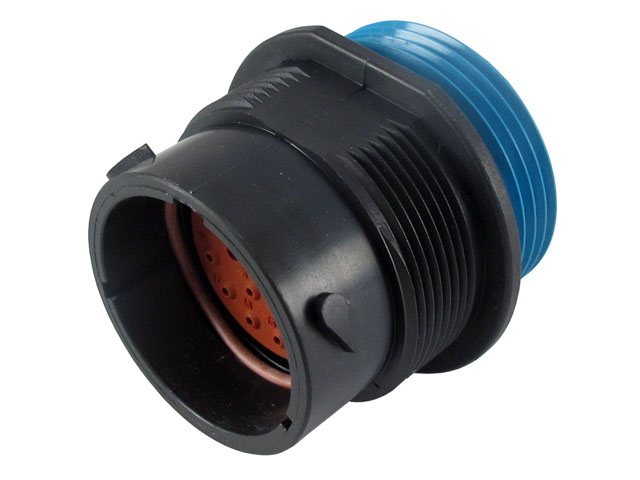

Mating connectors
Accessories
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
