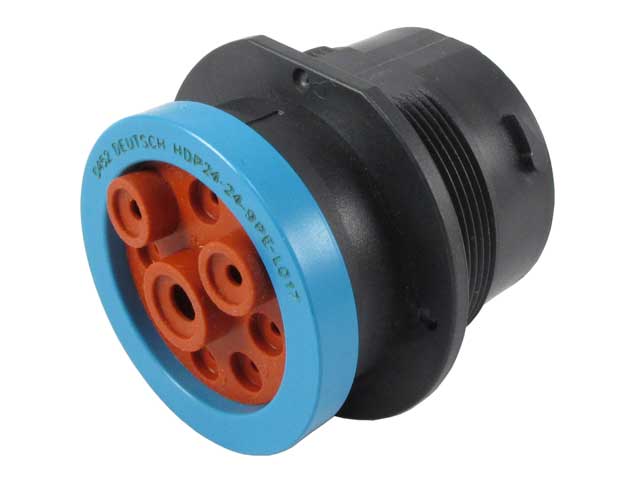

HDP24-24-9PE-L017
DeutschCatalogue item

HDP24-24-9PE-L017

Generally high availability — ask for current lead time
No. of cavities
9
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#4).261-.292 [6.63-7.42], (#8).135-.220 [3.43-5.59], (#12).097-.158 [2.46-4.01]
Request a quoteCall usEmail

Additional information

No. of cavities9
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#4).261-.292 [6.63-7.42], (#8).135-.220 [3.43-5.59], (#12).097-.158 [2.46-4.01]
keyedNo
MaterialPlastic
ModificationRing Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size6, 8, 10, 12, 14

Contacts

0460-204-0490
0460-204-0490
0460-204-08141
0460-204-08141
0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231

Mating connectors

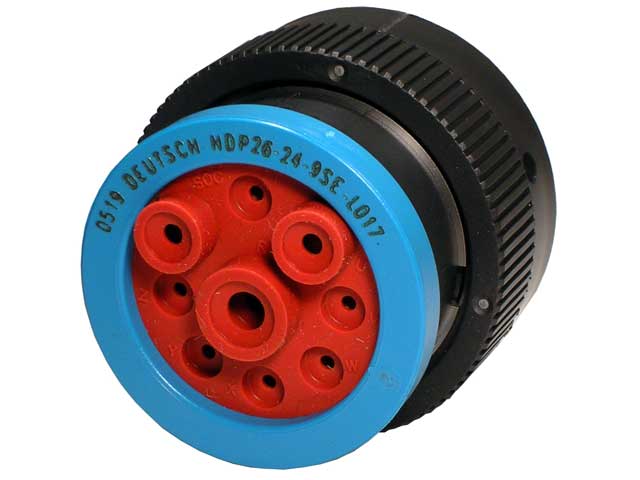

HDP26-24-9SE-L017
HDP26-24-9SE-L017

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
2428-008-2405
2428-008-2405
2428-011-2405
2428-011-2405

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-9PE-L017_99_c-hdp24-24-9pe-l017-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP24-24-XXPXSX-L017_C.pdfProduct Drawing (TIF)ENG_CD_HDP24-24-XXPXSX-L017_C.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-9PE-L017_99_c-hdp24-24-9pe-l017-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-9PE-L017_99_c-hdp24-24-9pe-l017-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-9PE-L017_99_c-hdp24-24-9pe-l017-99.3d_stp.zip
