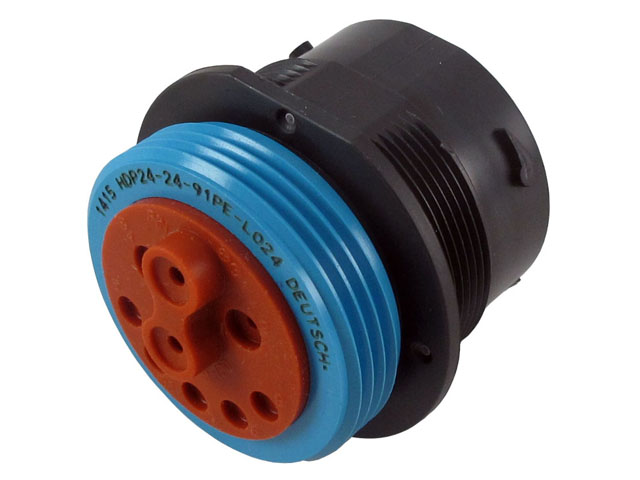

HDP24-24-91PE-L024
DeutschCatalogue item

HDP24-24-91PE-L024

Generally high availability — ask for current lead time
No. of cavities
9
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#8).135-.220 [3.43-5.59], (#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
Request a quoteCall usEmail

Additional information

No. of cavities9
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#8).135-.220 [3.43-5.59], (#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationWide Threaded Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesStandard HDP style connector. No internal jumper.
Wire Size8, 10, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-08141
0460-204-08141
0460-204-12141
0460-204-12141

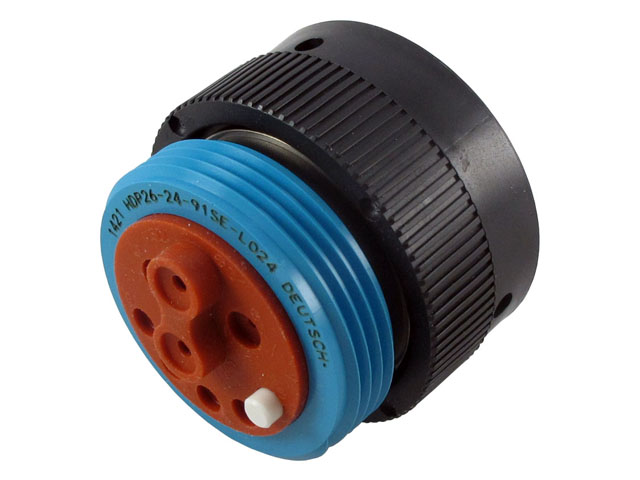

Mating connectors

HDP26-24-91SE-L024
HDP26-24-91SE-L024

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
2428-024-2405
2428-024-2405

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
