Additional Info
Additional Info
| Series | HDP20 Series |
|---|---|
| Brand | Deutsch |
| No. of cavities | 7 |
| Part Number | HDP24-24-7PN-C038 |
| Flange/In-line/PCB Mount | Flange, In-line |
| Modification | Only accepts 5960-203-04** Size 4 Pin |
| Shape | Circular |
| Material | Plastic |
| Connector Style | Receptacle |
| Holds Pin/Socket | Pin |
| Special Features | Only accepts 5960-203-04** Size 4 Pin |
| Insulation | (#4).311-.420 [7.90-10.67], (#16).100-.134 [2.54-3.40] |
| Wire Size | 4, 14, 16, 18, 20 |
| Shell Size | 24 shell |
| Color | Black |

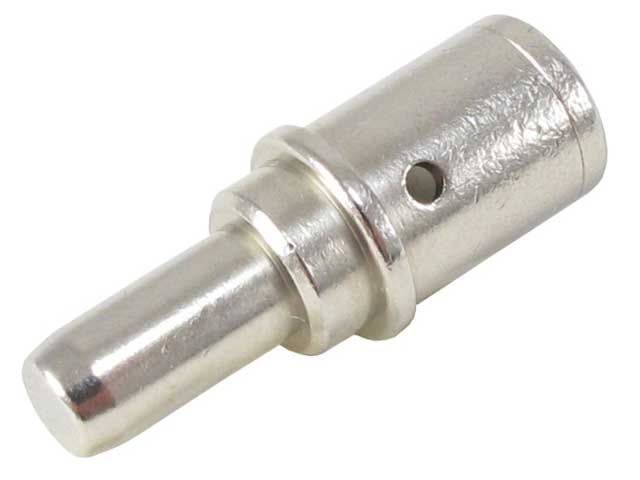

Contacts

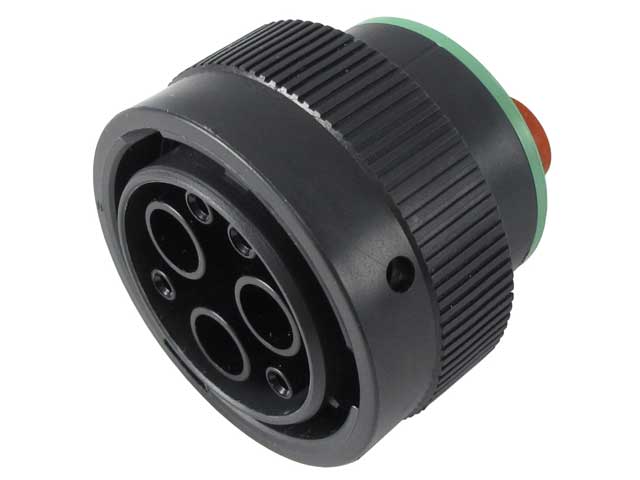

Mating Connectors
Required Components
this product has no mating Required components products

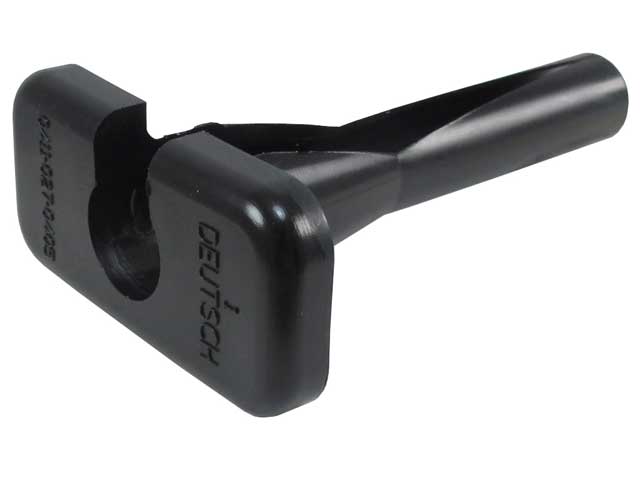

Accessories
Description
Details

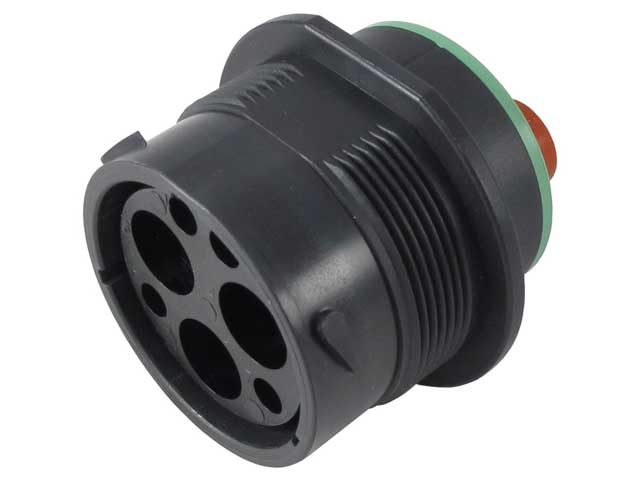

HDP24-24-7PN-C038
Drawings
Product Drawing (PDF) (222.68 KB)
Customer View Model (PDF) (641.89 KB)
Product Drawing (TIF) (168.95 KB)
CAD Files 2D DrawingВ (DXF Version 99 ZIP) (140.13 KB)
CAD Files 2D DrawingВ (DXF Version 99 ZIP) (140.13 KB)
CAD Files 3D ModelВ (IGES Version 99 ZIP) (1.06 MB)
CAD Files 3D ModelВ (IGES Version 99 ZIP) (1.06 MB)
CAD Files 3D ModelВ (STEP Version 99 ZIP) (644.40 KB)
CAD Files 3D ModelВ (STEP Version 99 ZIP) (644.40 KB)
Customer View Model (PDF) (641.89 KB)
