HDP24-24-47SE-L017

Generally high availability — ask for current lead time
No. of cavities
47
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Socket
Insulation
(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
Request a quoteCall usEmail

Additional information

No. of cavities47
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketSocket
Insulation(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialPlastic
ModificationRing Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size14, 16, 18, 20, 22

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031

Mating connectors

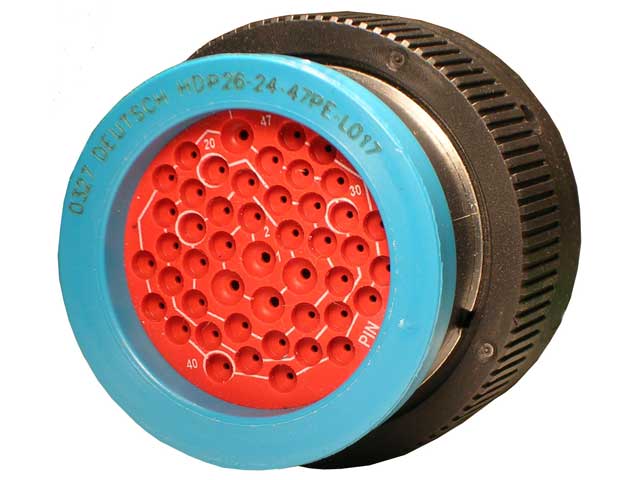

HDP26-24-47PE-L017
HDP26-24-47PE-L017

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
2428-008-2405
2428-008-2405
2428-011-2405
2428-011-2405

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-47SE-L017_99_c-hdp24-24-47se-l017-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP24-24-XXPXSX-L017_C.pdfProduct Drawing (TIF)ENG_CD_HDP24-24-XXPXSX-L017_C.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-47SE-L017_99_c-hdp24-24-47se-l017-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-47SE-L017_99_c-hdp24-24-47se-l017-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-47SE-L017_99_c-hdp24-24-47se-l017-99.3d_stp.zip
