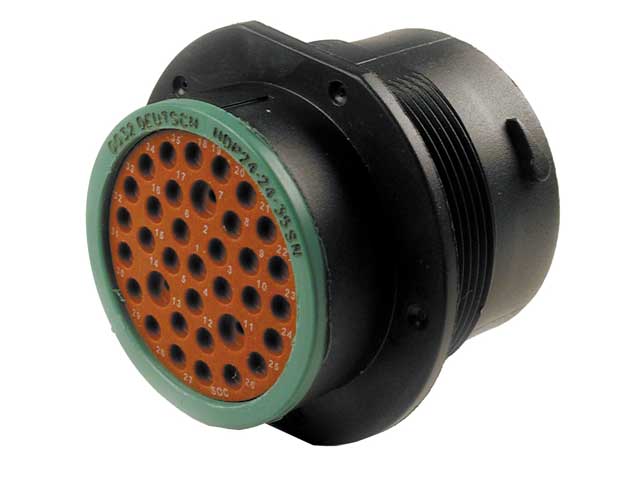

HDP24-24-35SN
DeutschCatalogue item

HDP24-24-35SN

Generally high availability — ask for current lead time
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Socket
Insulation
(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyed
No
Request a quoteCall usEmail

Additional information

ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketSocket
Insulation(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size14, 16, 18, 20, 22

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031

Mating connectors

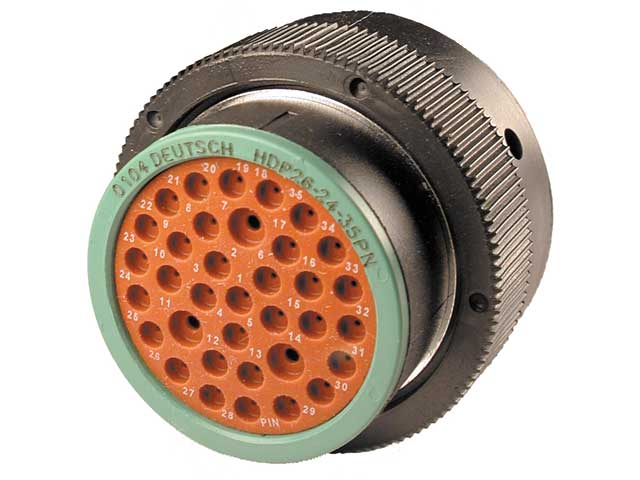

HDP26-24-35PN
HDP26-24-35PN

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
HD30-24BT-BK
HD30-24BT-BK
HDC26-24
HDC26-24

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-35SN_99_c-hdp24-24-35sn-99-3d.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-35SN_99_c-hdp24-24-35sn-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-35SN_99_c-hdp24-24-35sn-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-35SN_99_c-hdp24-24-35sn-99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
