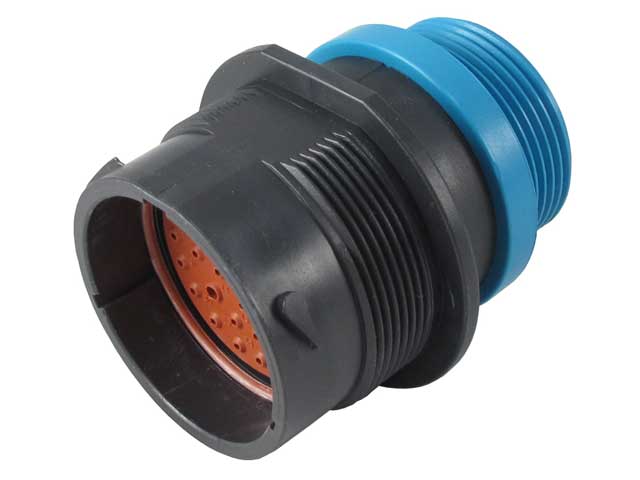

HDP24-24-35PE-L015
DeutschCatalogue item

HDP24-24-35PE-L015

Generally high availability — ask for current lead time
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyed
No
Request a quoteCall usEmail

Additional information

ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialPlastic
ModificationThreaded Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size14, 16, 18, 20, 22

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
M902-2053
M902-2053
M902-2243
M902-2243

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-35PE-L015_99_c-hdp24-24-35pe-l015-99-3d.pdfProduct Drawing (PDF)ENG_CD_HDP24-24-XXPXSX-L015_E.pdfProduct Drawing (TIF)ENG_CD_HDP24-24-XXPXSX-L015_E.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-35PE-L015_99_c-hdp24-24-35pe-l015-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-35PE-L015_99_c-hdp24-24-35pe-l015-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-35PE-L015_99_c-hdp24-24-35pe-l015-99.3d_stp.zip
