HDP24-24-29PE
DeutschCatalogue item

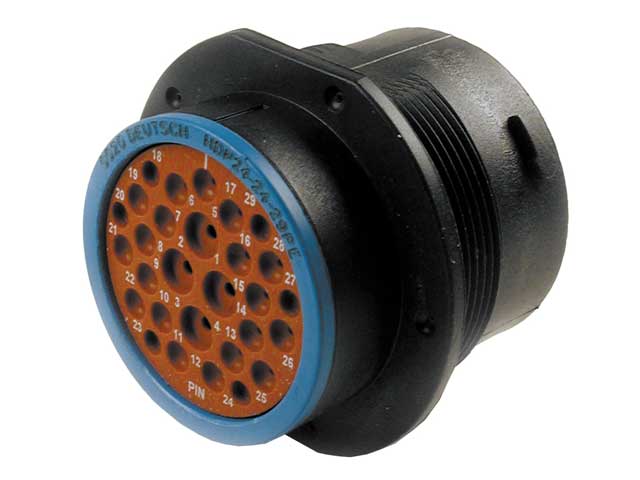

HDP24-24-29PE

Generally high availability — ask for current lead time
No. of cavities
29
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#12).097-.158 [2.46-4.01], (#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
Request a quoteCall usEmail

Additional information

No. of cavities29
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialPlastic
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size10, 12, 14, 16, 18, 20, 22

Contacts

0460-202-16141
0460-202-16141
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
0460-204-12141
0460-204-12141

Mating connectors

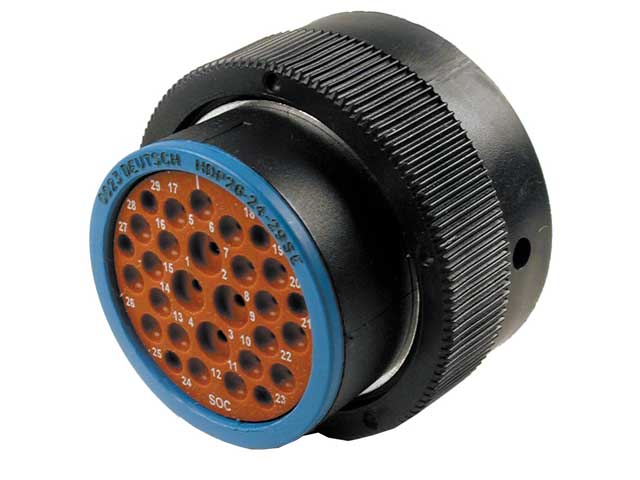

HDP26-24-29SE
HDP26-24-29SE

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
HD30-24BT-BK
HD30-24BT-BK
HDC26-24
HDC26-24

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-29PE_99.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-29PE_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-29PE_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-29PE_99.3d_stp.zip
