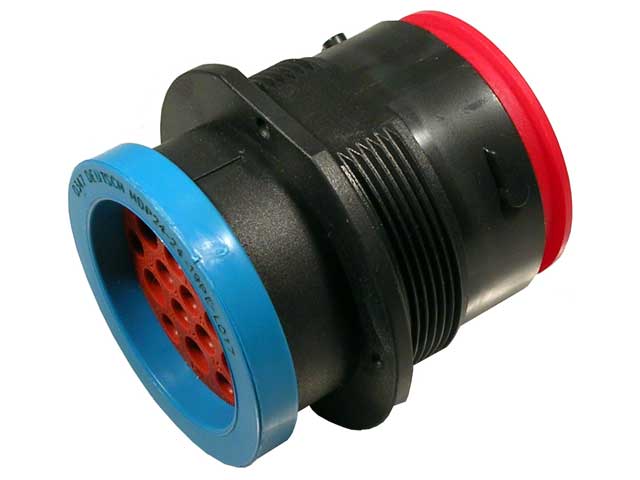

HDP24-24-19PE-L017
DeutschCatalogue item

HDP24-24-19PE-L017

Generally high availability — ask for current lead time
No. of cavities
19
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
Request a quoteCall usEmail

Additional information

No. of cavities19
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05]
keyedNo
MaterialPlastic
ModificationRing Adapter
Seal SizeE seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Wire Size10, 12, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231

Mating connectors

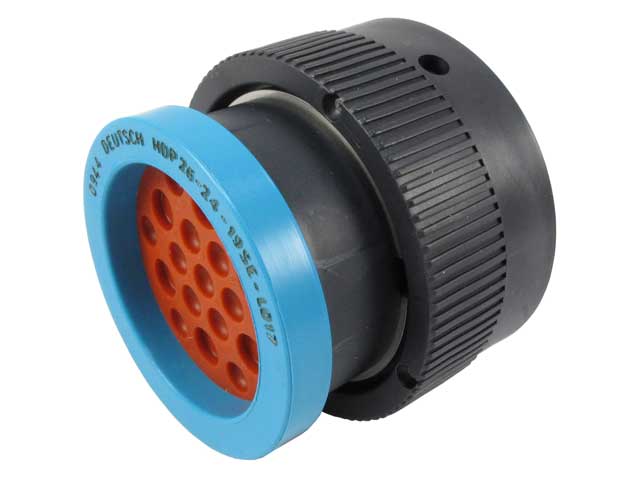

HDP26-24-19SE-L017
HDP26-24-19SE-L017

Accessories

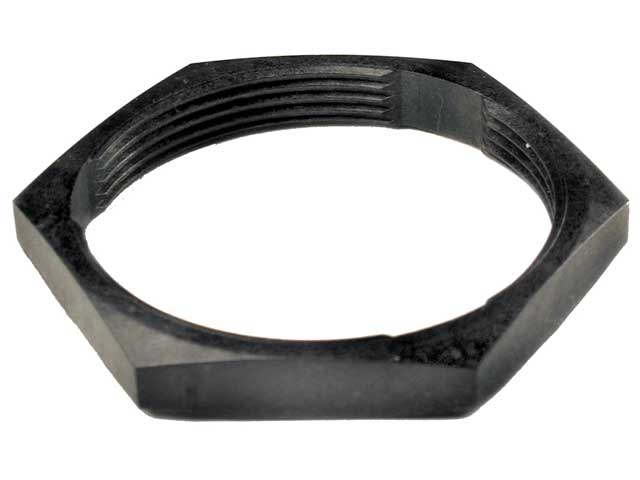

2411-001-2405
2411-001-2405

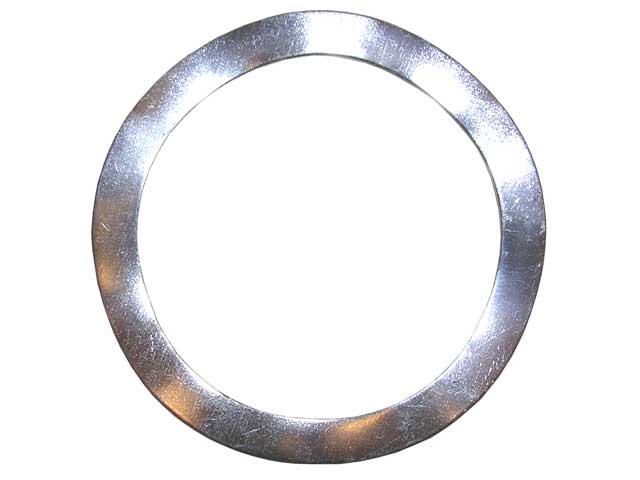

2414-001-2486
2414-001-2486

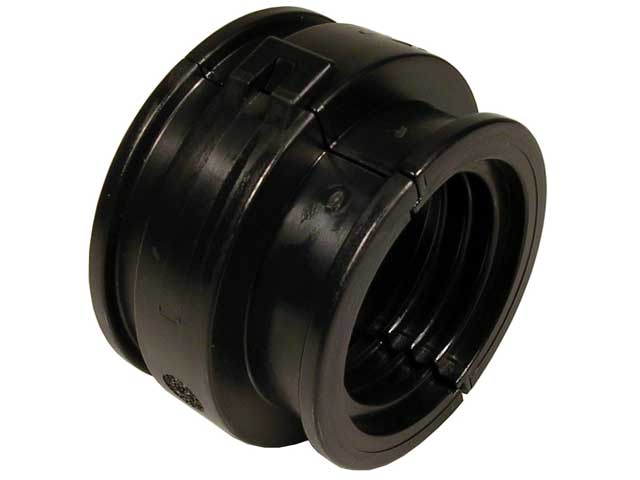

2428-008-2405
2428-008-2405

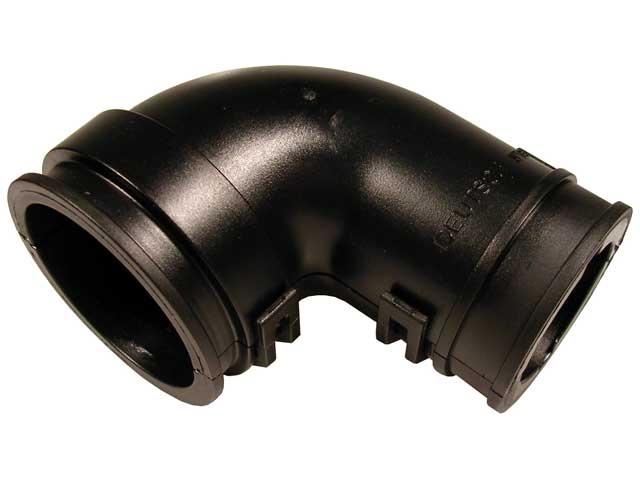

2428-011-2405
2428-011-2405

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-19PE-L017_99.pdfProduct Drawing (PDF)ENG_CD_HDP24-24-XXPXSX-L017_C.pdfProduct Drawing (TIF)ENG_CD_HDP24-24-XXPXSX-L017_C.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-19PE-L017_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-19PE-L017_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-19PE-L017_99.3d_stp.zip
