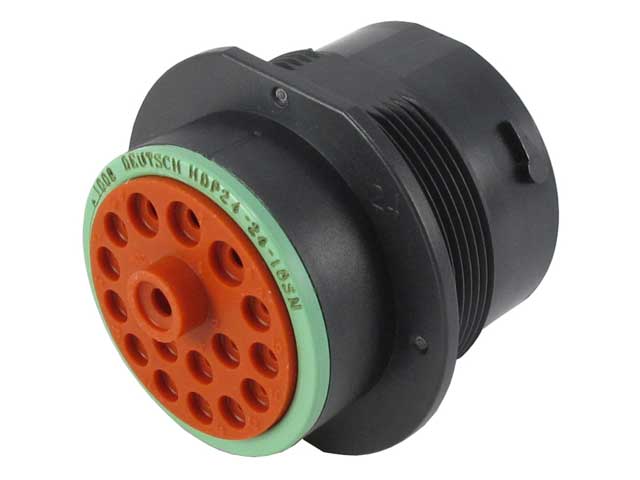

HDP24-24-18SN

Generally high availability — ask for current lead time
No. of cavities
18
Color
Black
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Socket
Insulation
(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
Request a quoteCall usEmail

Additional information

No. of cavities18
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketSocket
Insulation(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHDP20 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size8, 10, 12, 14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-203-08141
0462-203-08141
0462-203-12141
0462-203-12141

Mating connectors

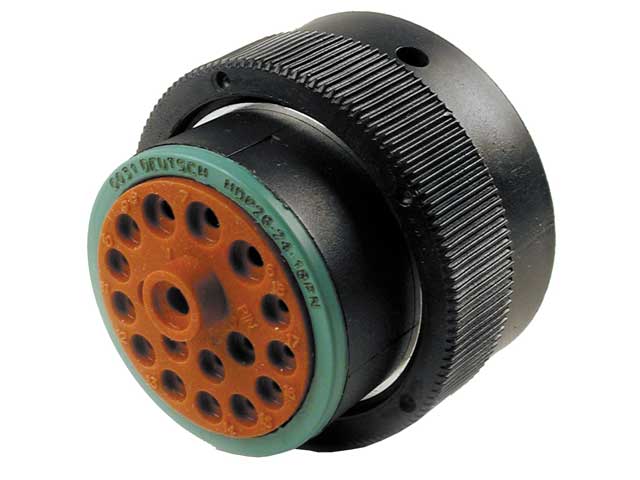

HDP26-24-18PN
HDP26-24-18PN

Accessories

2411-001-2405
2411-001-2405
2414-001-2486
2414-001-2486
HD30-24BT-BK
HD30-24BT-BK
HDC26-24
HDC26-24

Drawings

Customer View Model (PDF)3D_CVM_CVM_HDP24-24-18SN_99.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HDP24-24-18SN_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HDP24-24-18SN_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HDP24-24-18SN_99.3d_stp.zip
