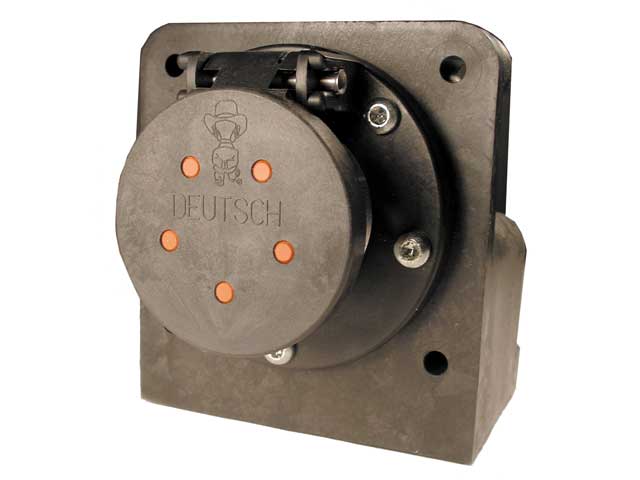

HDBOX-24-91PN
DeutschCatalogue item

HDBOX-24-91PN

Generally high availability — ask for current lead time
No. of cavities
15
Color
Black
Holds Pin/Socket
Pin
Insulation
(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32]
keyed
No
Material
Plastic
Request a quoteCall usEmail

Additional information

No. of cavities15
ColorBlack
Holds Pin/SocketPin
Insulation(#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32]
keyedNo
MaterialPlastic
Seal SizeN seal
SeriesHD30 Series
ShapeSpecial
Shell Size24 shell
Special FeaturesHouses HD34-24-91PN, DT13-2P, DT13-4P
Wire Size8, 10, 12, 14

Mating connectors

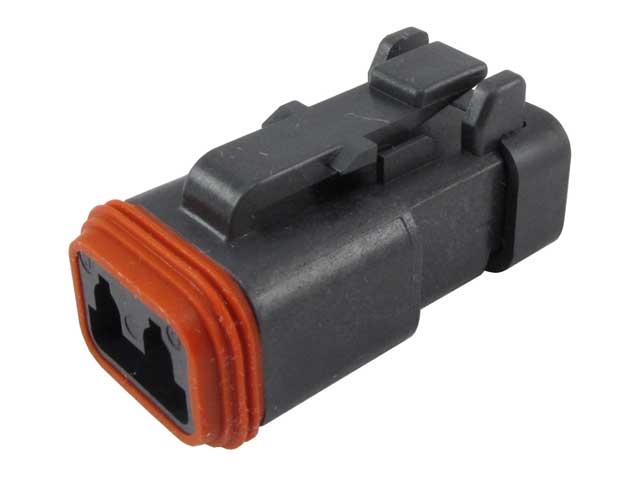

DT06-2S-EP06
DT06-2S-EP06

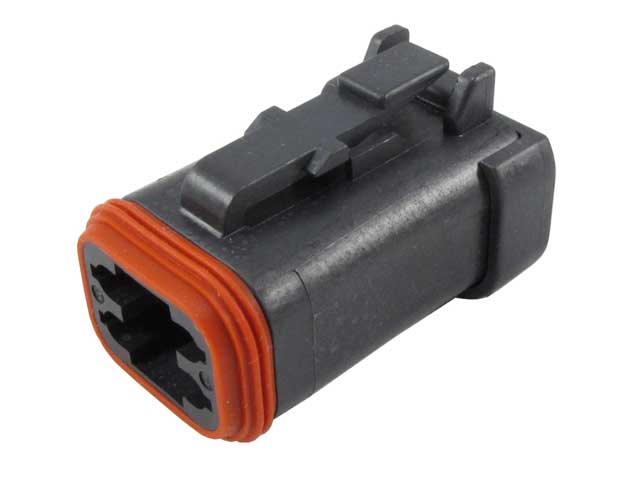

DT06-4S-EP06
DT06-4S-EP06
HDB36-24-91SN-059
HDB36-24-91SN-059

Drawings

Product Drawing (PDF)ENG_CD_HDBOX-24-91PN_F.pdfProduct Drawing (TIF)ENG_CD_HDBOX-24-91PN_F.tif

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
