Additional Info
Additional Info
| Series | HD30 Series |
|---|---|
| Brand | Deutsch |
| No. of cavities | 9 |
| Part Number | HDB36-24-91SN-059 |
| Flange/In-line/PCB Mount | In-line |
| Modification | Cable Clamp |
| Shape | Circular |
| Material | Aluminum |
| Connector Style | Plug |
| Holds Pin/Socket | Socket |
| Special Features | Breakaway, J1939, cavities 4 and 5 internally connected |
| Insulation | (#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40] |
| Wire Size | 8, 10, 12, 14, 16, 18, 20 |
| Shell Size | 24 shell |
| Color | Silver |
Contacts
Mating Connectors
Required Components
this product has no mating Required components products
Accessories
HDC34-24
1
Description
Details

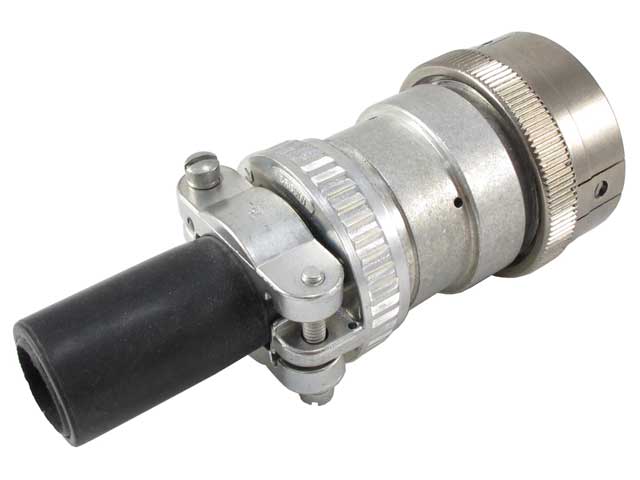

HDB36-24-91SN-059
