DeutschCatalogue item

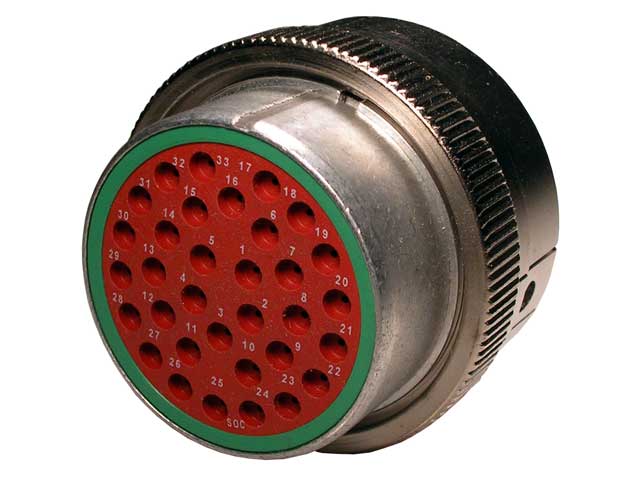

HDB36-24-33SN
Generally high availability — ask for current lead time
No. of cavities
33
Color
Silver
Connector Style
Plug
Contact Size
20
Current Rating
7.5
Flange/In-line/PCB Mount
In-line
Additional information
| No. of cavities | 33 |
| Color | Silver |
| Connector Style | Plug |
| Contact Size | 20 |
| Current Rating | 7.5 |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Socket |
| Insulation | .040-.095 [1.02-2.41] |
| keyed | No |
| Material | Aluminum |
| Seal Size | N seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Special Features | Breakaway |
| Wire Size | 16-22 AWG |
Contacts

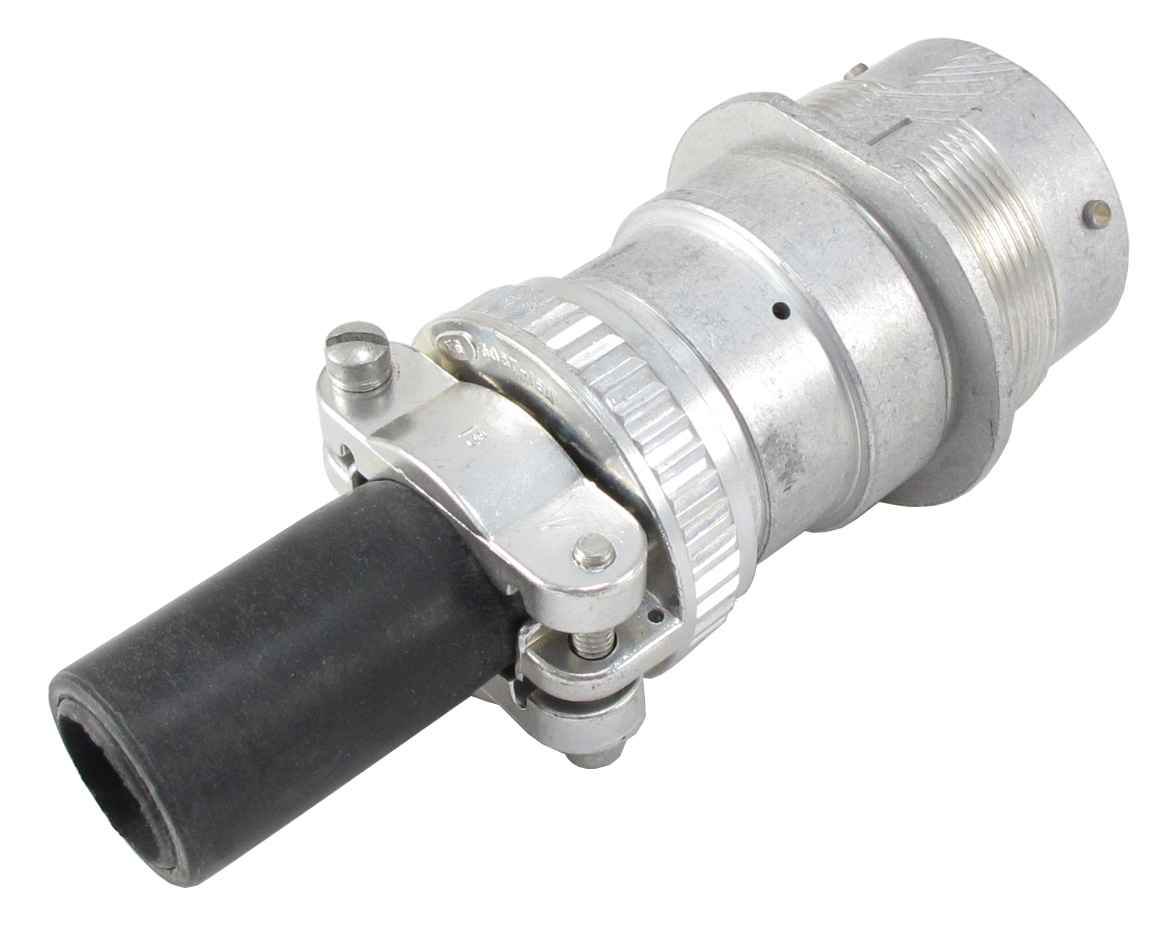

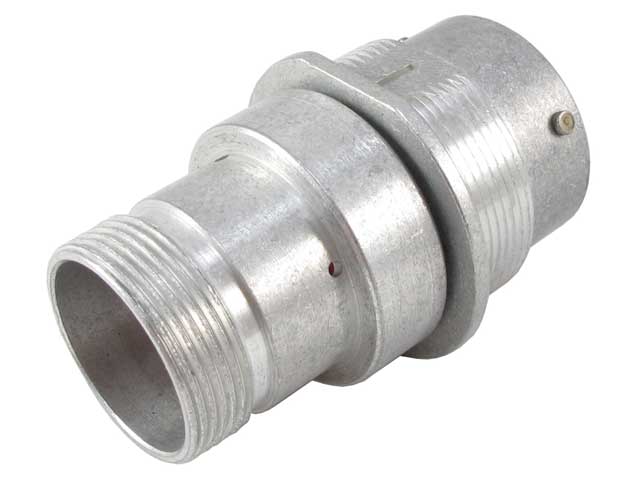

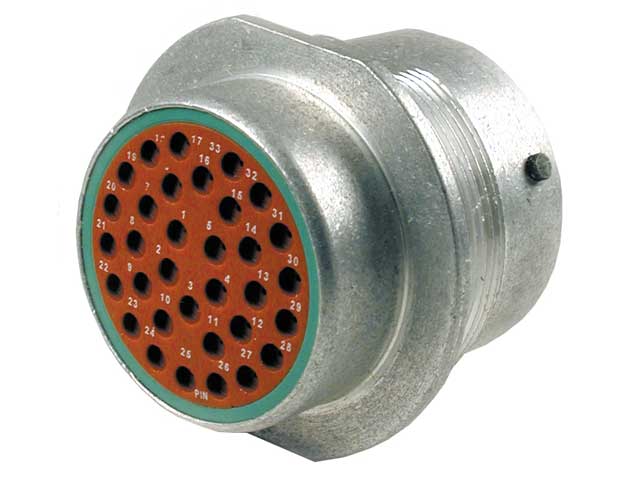

Mating connectors
Accessories
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
