DeutschCatalogue item

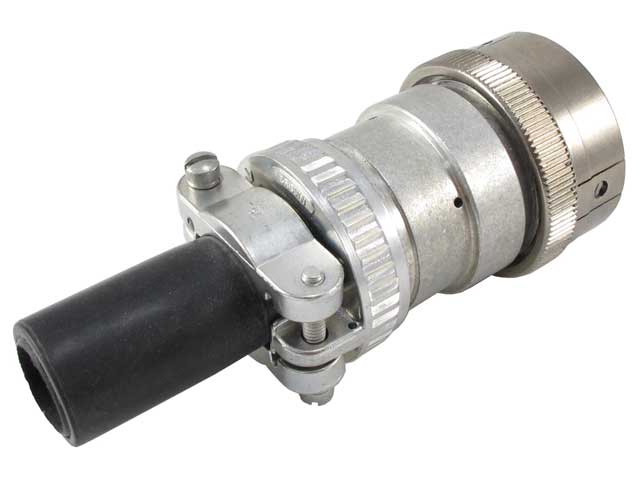

HDB36-24-23PE-059
Generally high availability — ask for current lead time
Color
Silver
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Pin
Additional information
| Color | Silver |
| Connector Style | Plug |
| Contact Size | 16 |
| Current Rating | 13 |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Pin |
| Insulation | .053-.120 [1.35-3.05] |
| keyed | No |
| Material | Aluminum |
| Modification | Cable Clamp |
| Seal Size | E seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Special Features | Reverse, breakaway |
| Wire Size | 14, 16, 18, 20 |
Contacts
Mating connectors
Accessories
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
