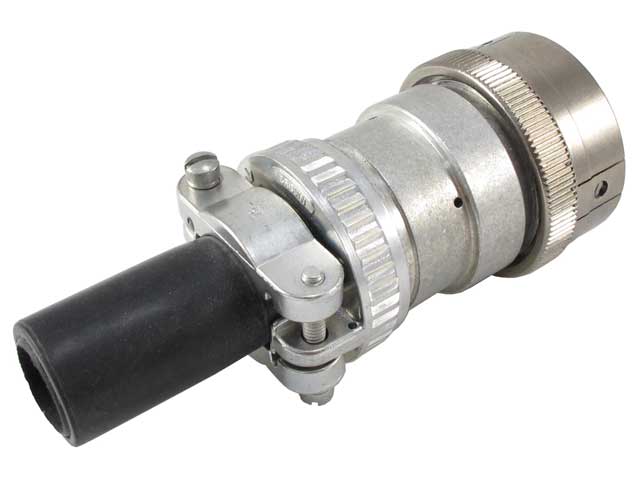

HDB36-24-21SN-059
DeutschCatalogue item

HDB36-24-21SN-059

Generally high availability — ask for current lead time
No. of cavities
21
Color
Silver
Connector Style
Plug
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Socket
Insulation
(#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
Request a quoteCall usEmail

Additional information

No. of cavities21
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation(#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesBreakaway
Wire Size10, 12, 14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231

Mating connectors

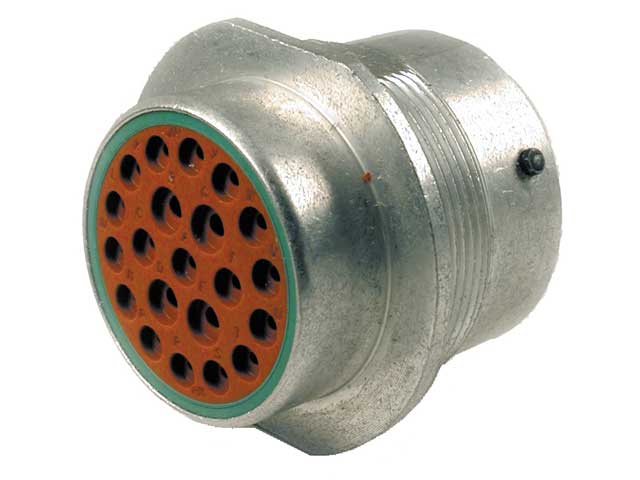

HD34-24-21PN
HD34-24-21PN
HD34-24-21PN-059
HD34-24-21PN-059

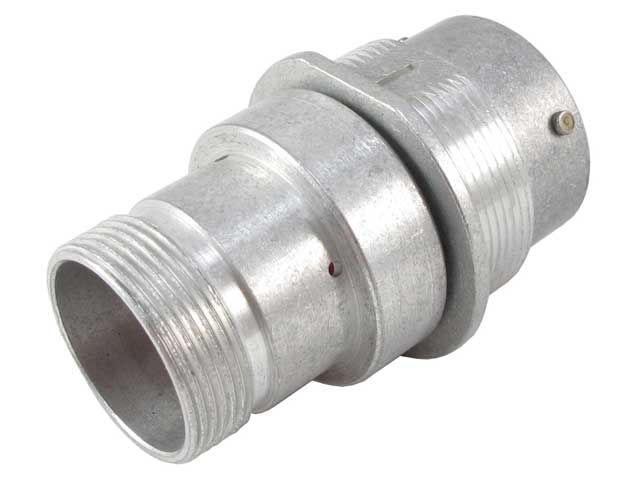

HD34-24-21PN-072
HD34-24-21PN-072

Accessories

HDC34-24
HDC34-24

Drawings

Product Drawing (PDF)ENG_CD_HDB36-XX-XXPXSX-059_-.pdfProduct Drawing (TIF)ENG_CD_HDB36-XX-XXPXSX-059_-.tif

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
