DeutschCatalogue item

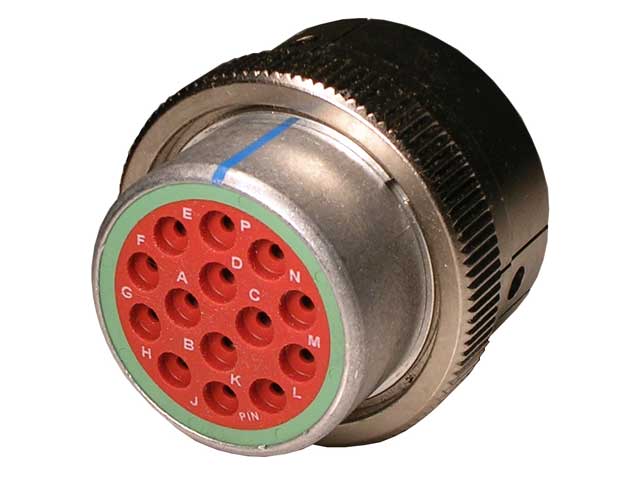

HDB36-18-14PN
Generally high availability — ask for current lead time
No. of cavities
14
Color
Silver
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Additional information
| No. of cavities | 14 |
| Color | Silver |
| Connector Style | Plug |
| Contact Size | 16 |
| Current Rating | 13 |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Pin |
| Insulation | .100-.134 [2.54-3.40] |
| keyed | No |
| Material | Aluminum |
| Seal Size | N seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 18 shell |
| Special Features | Reverse, breakaway |
| Wire Size | 14, 16, 18, 20 |
Contacts
Mating connectors
Accessories
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
