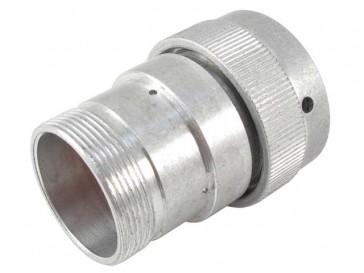

HD36-24-35PN-072
DeutschCatalogue item

HD36-24-35PN-072

Generally high availability — ask for current lead time
Color
Silver
Connector Style
Plug
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Pin
Insulation
(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyed
No
Request a quoteCall usEmail

Additional information

ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
ModificationAdapter
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse
Wire Size14, 16, 18, 20, 22

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Mating connectors

HD34-24-35SN
HD34-24-35SN
HD34-24-35SN-059
HD34-24-35SN-059
HD34-24-35SN-072
HD34-24-35SN-072

Accessories

HDC34-24
HDC34-24

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.

Visit DEUTSCH website
