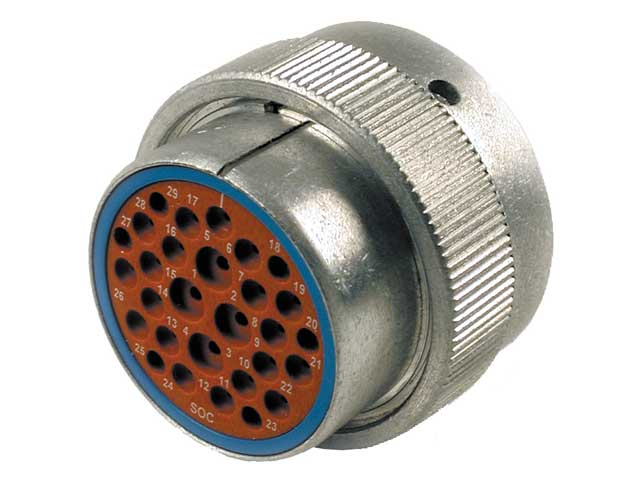

HD36-24-29SE
DeutschCatalogue item

HD36-24-29SE

Generally high availability — ask for current lead time
No. of cavities
29
Color
Silver
Connector Style
Plug
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Socket
Insulation
(#12).097-.158 [2.46-4.01], (#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
Request a quoteCall usEmail

Additional information

No. of cavities29
ColorSilver
Connector StylePlug
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation(#12).097-.158 [2.46-4.01], (#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialAluminum
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size10, 12, 14, 16, 18, 20, 22

Contacts

0462-201-16141
0462-201-16141
0462-201-20141
0462-201-20141
0462-201-2031
0462-201-2031
0462-203-12141
0462-203-12141

Mating connectors

HD34-24-29PE
HD34-24-29PE
HD34-24-29PE-059
HD34-24-29PE-059
HD34-24-29PE-072
HD34-24-29PE-072

Accessories

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24
WHDS-24-1
WHDS-24-1
WHDS-24-2
WHDS-24-2

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD36-24-29SE_99.pdfProduct Drawing (PDF)ENG_CD_HD36-24-XXPXSX_B.pdfProduct Drawing (TIF)ENG_CD_HD36-24-XXPXSX_B.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD36-24-29SE_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD36-24-29SE_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD36-24-29SE_99.3d_stp.zip
