HD36-18-8PE-059
DeutschCatalogue item

HD36-18-8PE-059

Generally high availability — ask for current lead time
No. of cavities
8
Color
Silver
Connector Style
Plug
Contact Size
12
Current Rating
25
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities8
ColorSilver
Connector StylePlug
Contact Size12
Current Rating25
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.097-.158 [2.46-4.01]
keyedNo
MaterialAluminum
ModificationCable Clamp
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Special FeaturesReverse
Wire Size10, 12, 14

Contacts

0460-204-12141
0460-204-12141
0460-220-1231
0460-220-1231
1060-12-0144
1060-12-0144
1060-12-0166
1060-12-0166

Mating connectors

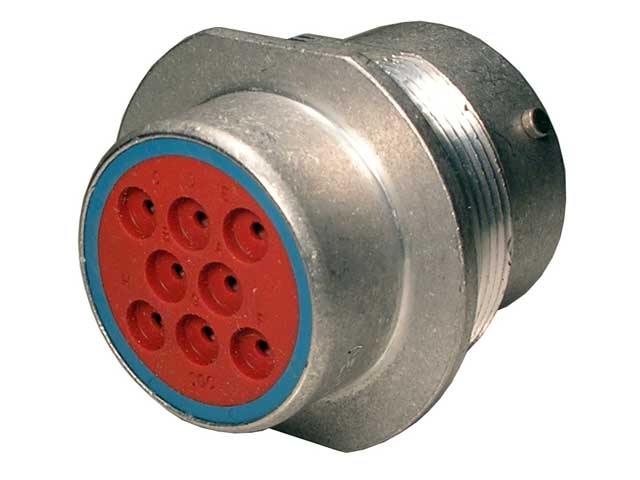

HD34-18-8SE
HD34-18-8SE
HD34-18-8SE-059
HD34-18-8SE-059

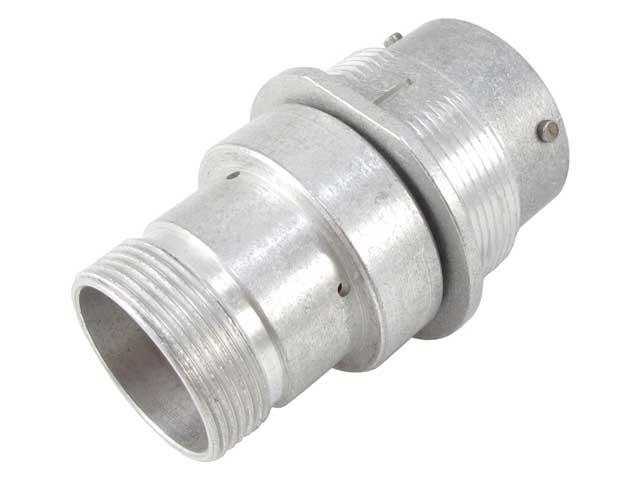

HD34-18-8SE-072
HD34-18-8SE-072

Accessories

HDC34-18
HDC34-18

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD36-18-8PE-059_99.pdfProduct Drawing (PDF)ENG_CD_HD36-18-XXPXSX-059_A.pdfProduct Drawing (TIF)ENG_CD_HD36-18-XXPXSX-059_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD36-18-8PE-059_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD36-18-8PE-059_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD36-18-8PE-059_99.3d_stp.zip
