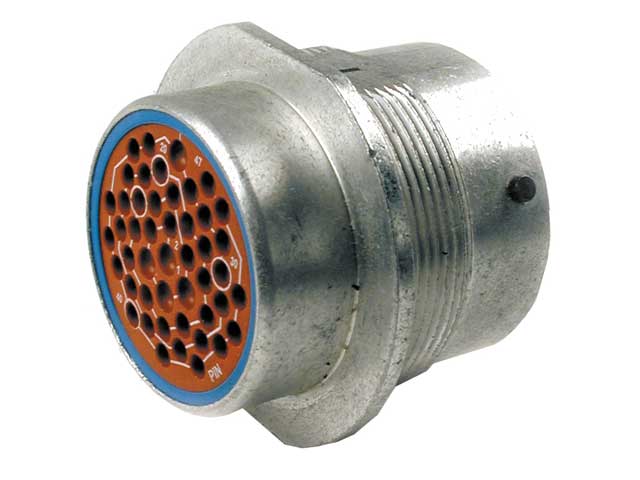

HD34-24-47PE

Outlet stock, €26.64 per unit

78 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
HDDeutsch

Deutsch HD34-24-47PE, HD Series, connector, for wire processing

HD Series

Generally high availability — ask for current lead time
Cavities
47
Series
HD Series
Wire size
14, 16, 28, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities47
ColorSilver
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#16).053-.103 [1.35-2.62], (#20).040-.083 [1.01-2.10]
keyedNo
MaterialAluminum
Seal SizeE seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size14, 16, 28, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031

Mating connectors

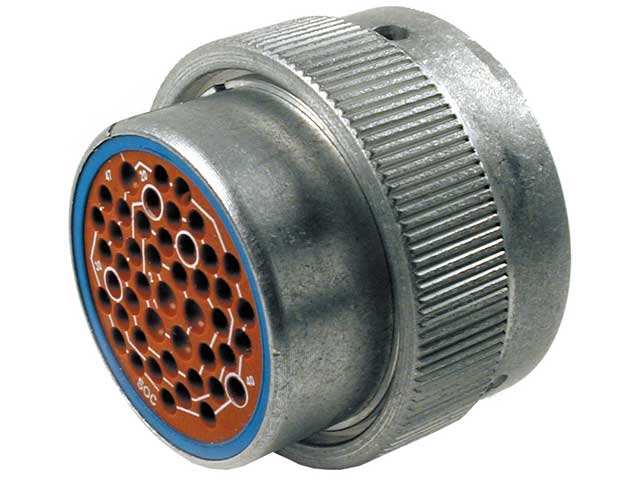

HD36-24-47SE
HD36-24-47SE

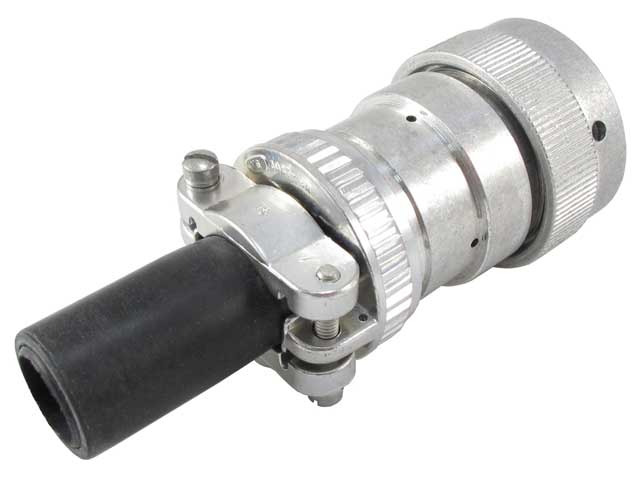

HD36-24-47SE-059
HD36-24-47SE-059

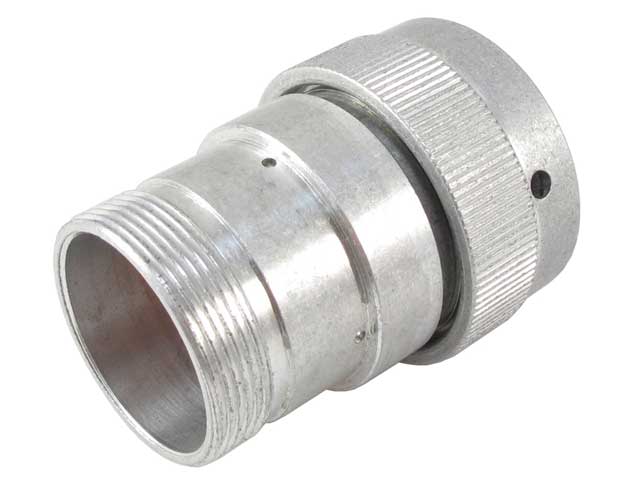

HD36-24-47SE-072
HD36-24-47SE-072

Accessories

112263-90
112263-90
112264
112264
HD30-24BT
HD30-24BT
HDC36-24
HDC36-24

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
