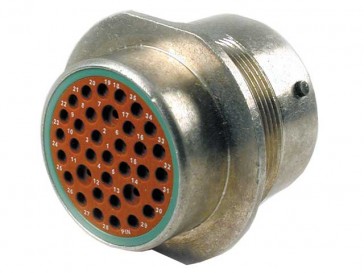

HD34-24-35PN
Generally high availability — ask for current lead time
Color
Silver
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41]
keyed
No
Additional information
| Color | Silver |
| Connector Style | Receptacle |
| Flange/In-line/PCB Mount | Flange, In-line |
| Holds Pin/Socket | Pin |
| Insulation | (#16).100-.134 [2.54-3.40], (#20).040-.095 [1.02-2.41] |
| keyed | No |
| Material | Aluminum |
| Seal Size | N seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Wire Size | 14, 16, 28, 20, 22 |
Contacts

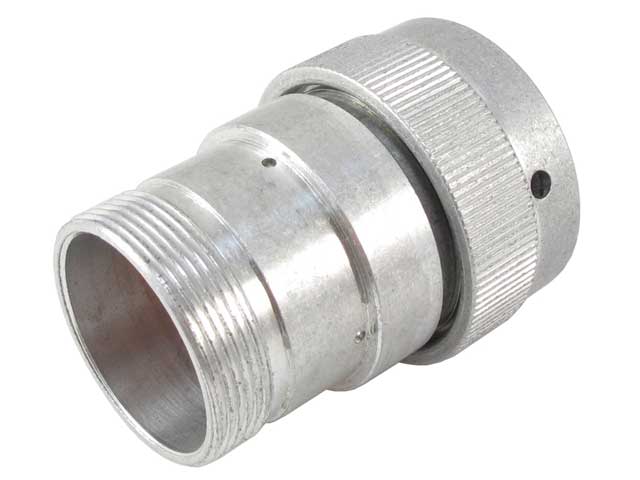

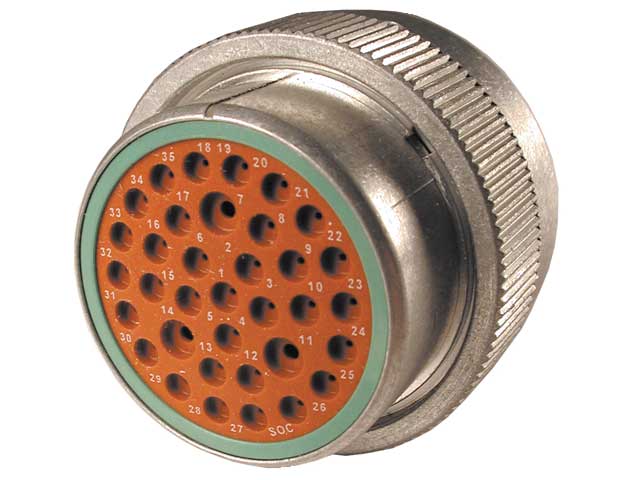

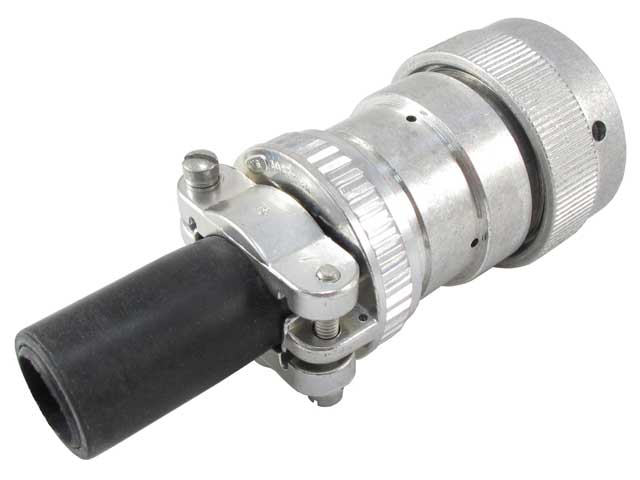

Mating connectors
Accessories
Drawings
Customer View Model (PDF)3D_CVM_CVM_HD34-24-35PN_99_c-hd34-24-35pn-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD34-24-XXPXSX_B.pdfProduct Drawing (TIF)ENG_CD_HD34-24-XXPXSX_B.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD34-24-35PN_99_c-hd34-24-35pn-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD34-24-35PN_99_c-hd34-24-35pn-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD34-24-35PN_99_c-hd34-24-35pn-99.3d_stp.zip
