DeutschCatalogue item

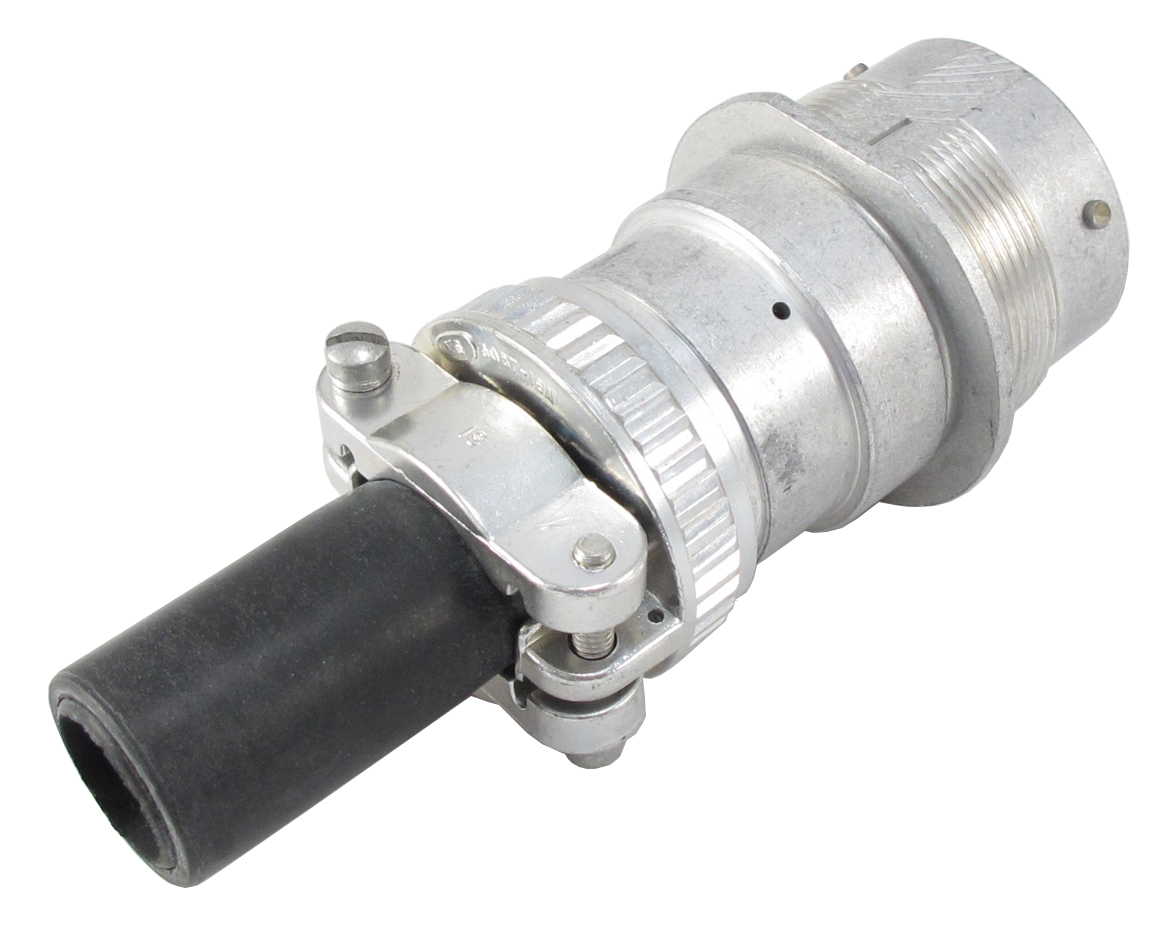

HD34-24-14SN-059
Generally high availability — ask for current lead time
No. of cavities
14
Color
Silver
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Socket
Insulation
(#4).280-.292 [7.11-7.42], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40]
Additional information
| No. of cavities | 14 |
| Color | Silver |
| Connector Style | Receptacle |
| Flange/In-line/PCB Mount | Flange, In-line |
| Holds Pin/Socket | Socket |
| Insulation | (#4).280-.292 [7.11-7.42], (#12).134-.170 [3.40-4.32], (#16).100-.134 [2.54-3.40] |
| keyed | No |
| Material | Aluminum |
| Modification | Cable Clamp |
| Seal Size | N seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Special Features | Reverse |
| Wire Size | 6, 10, 12, 14, 16, 18, 20 |
