HD34-18-6PN
DeutschCatalogue item

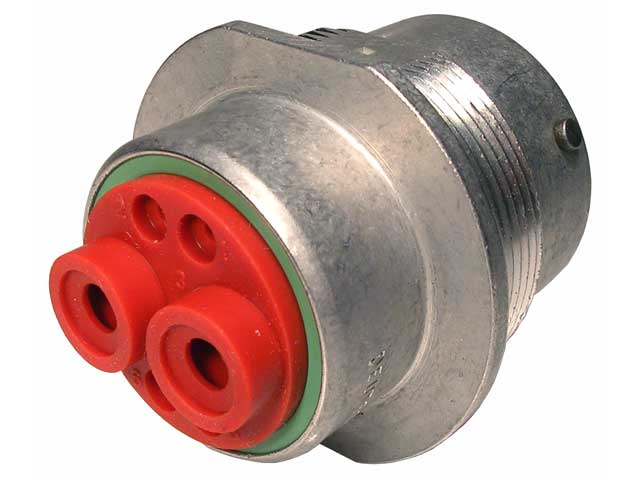

HD34-18-6PN

Generally high availability — ask for current lead time
No. of cavities
6
Color
Silver
Connector Style
Receptacle
Flange/In-line/PCB Mount
Flange, In-line
Holds Pin/Socket
Pin
Insulation
(#4).280-.292 [7.11-7.42], (#16).100-.134 [2.54-3.40]
Request a quoteCall usEmail

Additional information

No. of cavities6
ColorSilver
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#4).280-.292 [7.11-7.42], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Wire Size6, 14, 16, 18, 20

Contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-0490
0460-204-0490
1060-16-0122
1060-16-0122

Mating connectors

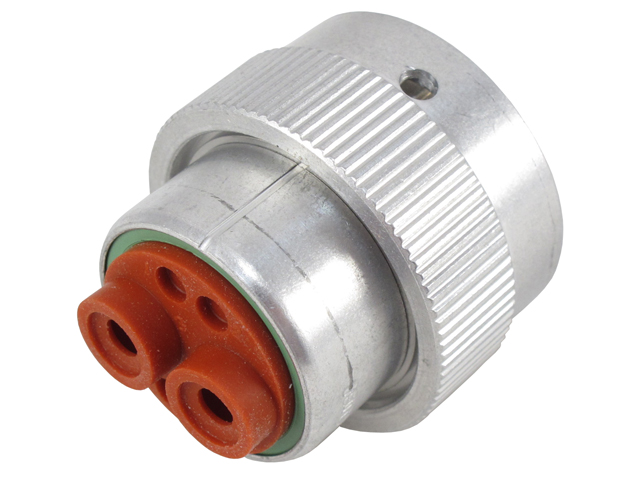

HD36-18-6SN
HD36-18-6SN

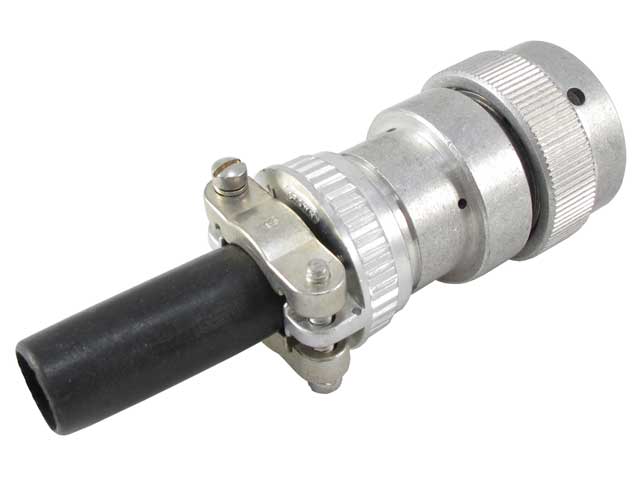

HD36-18-6SN-059
HD36-18-6SN-059

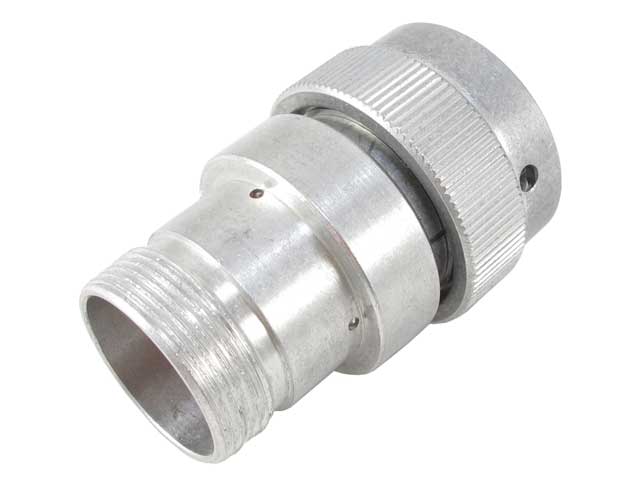

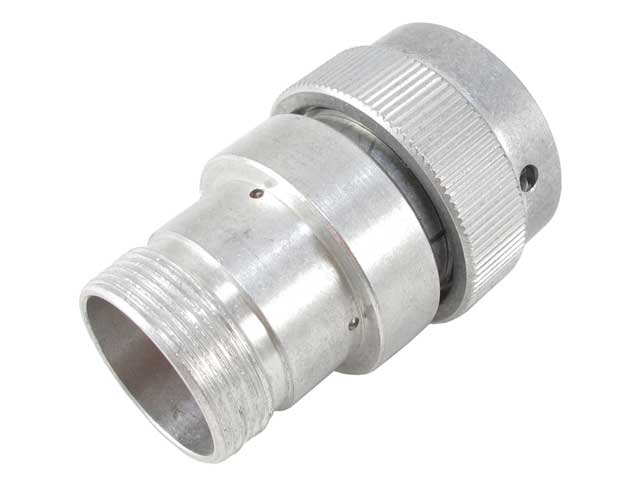

HD36-18-6SN-072
HD36-18-6SN-072

Accessories

114020-90
114020-90
114021
114021
HD30-18BT
HD30-18BT
HDC36-18

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD34-18-6PN_99.pdfProduct Drawing (PDF)ENG_CD_HD34-18-6PX_A.pdfProduct Drawing (TIF)ENG_CD_HD34-18-6PX_A.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD34-18-6PN_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD34-18-6PN_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD34-18-6PN_99.3d_stp.zip
