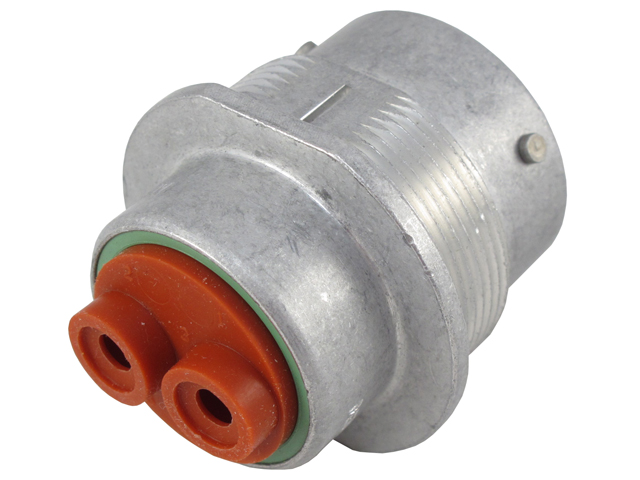

HD34-18-6PN-C030
DeutschCatalogue item

HD34-18-6PN-C030

Generally high availability — ask for current lead time
No. of cavities
2
Color
Silver
Connector Style
Receptacle
Contact Size
4
Current Rating
100
Flange/In-line/PCB Mount
Flange, In-line
Request a quoteCall usEmail

Additional information

No. of cavities2
ColorSilver
Connector StyleReceptacle
Contact Size4
Current Rating100
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation.280-.292 [7.11-7.42]
keyedNo
MaterialAluminum
ModificationCavities 1, 2, 5, 6 Blocked
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Wire Size6

Contacts

0460-204-0490
0460-204-0490

Mating connectors

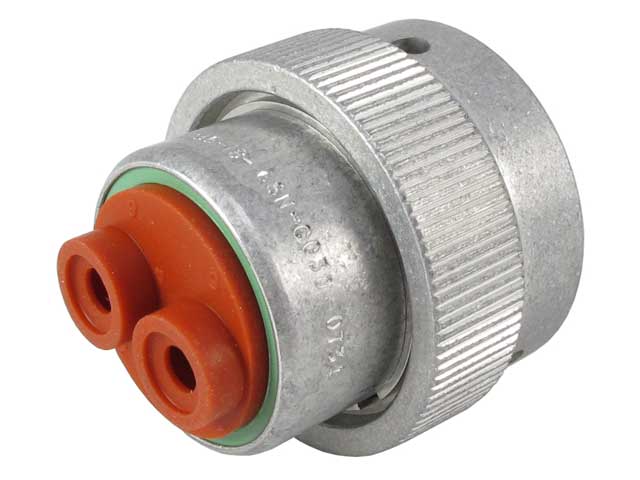

HD36-18-6SN-C030
HD36-18-6SN-C030

Accessories

114020-90
114020-90
114021
114021
HD30-18BT
HD30-18BT
HDC36-18

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD34-18-6PN-C030_99.pdfProduct Drawing (PDF)ENG_CD_HD34-18-XXPXSX_A.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD34-18-6PN-C030_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD34-18-6PN-C030_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD34-18-6PN-C030_99.3d_stp.zip

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
