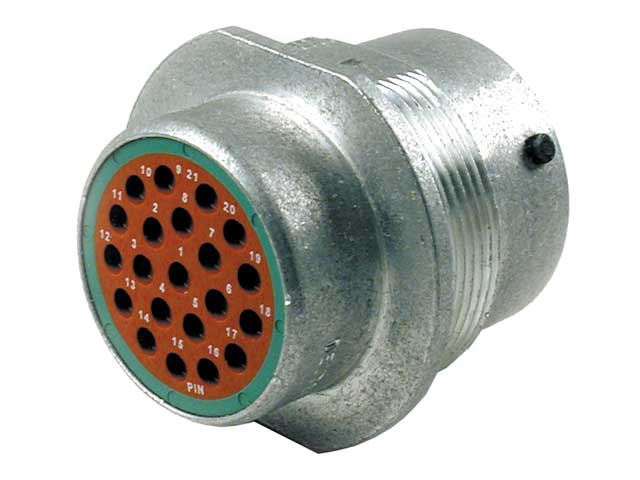

HD34-18-21PN

Outlet stock, €12.00 per unit

84 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
HDDeutsch

Deutsch HD34-18-21PN, HD Series, connector, for wire processing

HD Series · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
21
Contact size
20
Series
HD Series
Current rating
7.5
Wire size
16, 18, 20, 22
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities21
ColorSilver
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation.040-.095 [1.02-2.41]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Wire Size16, 18, 20, 22

Compatible contacts

0460-202-20141
0460-202-20141
0460-202-2031
0460-202-2031
1060-20-0122
1060-20-0122
1060-20-0144
1060-20-0144

Mating connectors

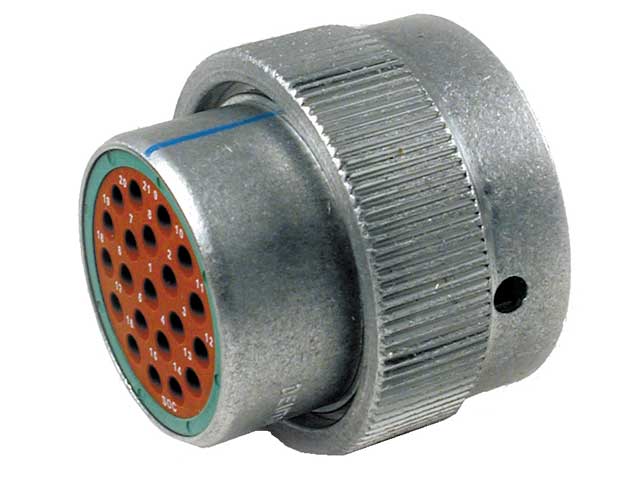

HD36-18-21SN
HD36-18-21SN

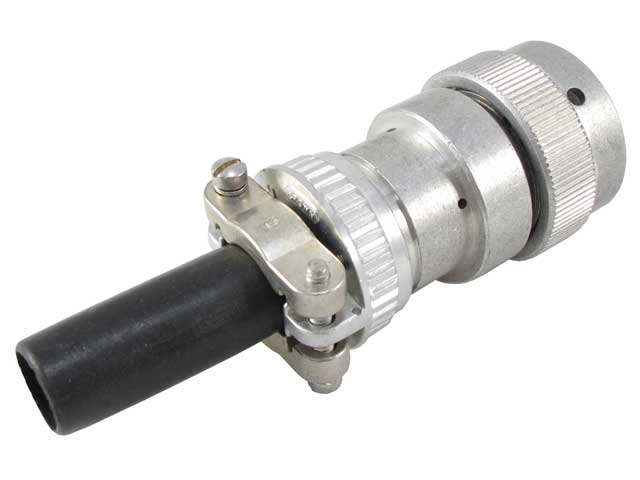

HD36-18-21SN-059
HD36-18-21SN-059

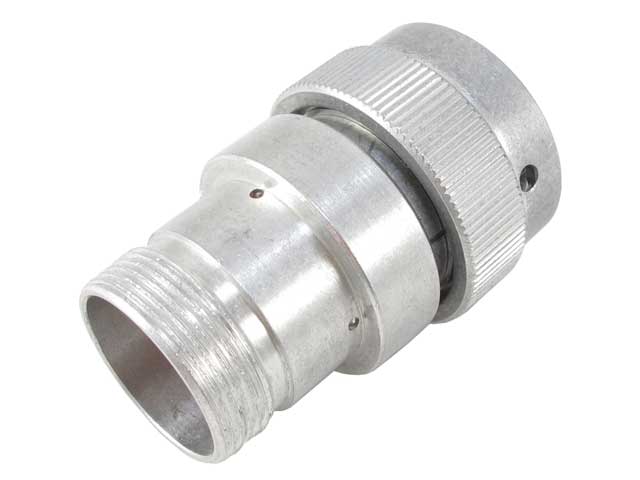

HD36-18-21SN-072
HD36-18-21SN-072

Accessories

114020-90
114020-90
114021
114021
HD30-18BT
HD30-18BT
HDC36-18

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
