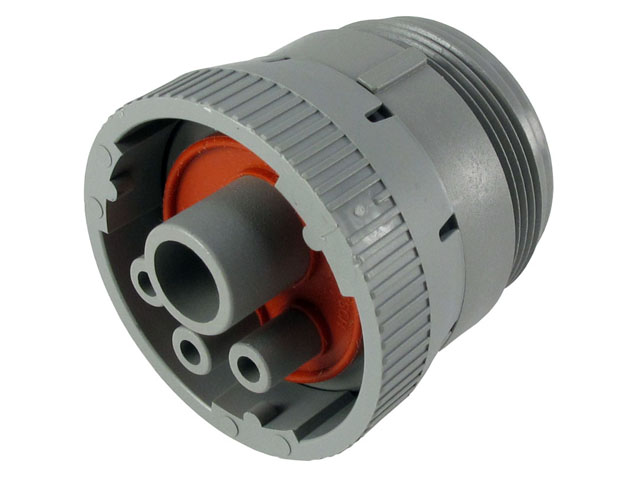

HD16-4-4S-C024
DeutschCatalogue item

HD16-4-4S-C024

Generally high availability — ask for current lead time
No. of cavities
1
Color
Gray
Connector Style
Plug
Contact Size
4
Current Rating
100
Flange/In-line/PCB Mount
In-line
Request a quoteCall usEmail

Additional information

No. of cavities1
ColorGray
Connector StylePlug
Contact Size4
Current Rating100
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.280-.292 [7.11-7.42]
keyedNo
MaterialPlastic
ModificationThreaded Rear, Cavities B, C, D Blocked
SeriesHD10 Series
ShapeCircular
Wire Size6

Contacts

0462-203-04141
0462-203-04141

Accessories

HD10-9BT
HD10-9BT
HDC14-9
HDC14-9
HDC14-9-JDL
HDC14-9-JDL

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD16-4-4S-C024_99_c-hd16-4-4s-c024-99-3d.pdfProduct Drawing (PDF)ENG_CD_HD16-4-4S-C024_-.pdfProduct Drawing (TIF)ENG_CD_HD16-4-4S-C024_-.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD16-4-4S-C024_99_c-hd16-4-4s-c024-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD16-4-4S-C024_99_c-hd16-4-4s-c024-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD16-4-4S-C024_99_c-hd16-4-4s-c024-99.3d_stp.zip
